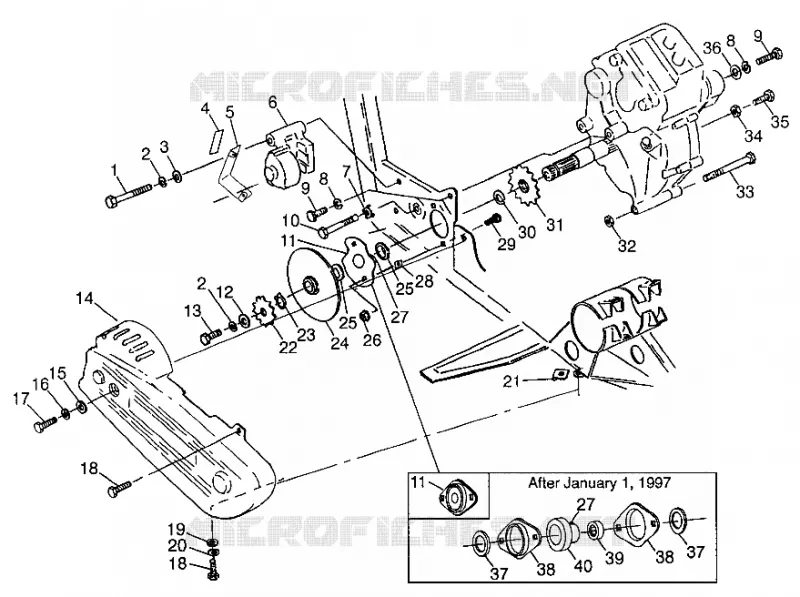

GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 6X6 W97AE42A AND SWEDISH MAG (4940754075C014)
5
Parts Diagram
Parts Catalog
REAR BRAKE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075C013)
by
REAR WHEEL DRIVE MAGNUM 6X6 W97AE42A AND SWEDISH MAGNUM 6X6 S97AE42E (4940754075D001)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 6X6 W97AE42A AND SWEDISH MAG (4940754075C014)
1
2
2
3
4
5
6
7
8
8
9
9
7
11
11
11
11
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
27
27
27
27
27
27
27
27
28
28
28
28
28
28
28
28
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
1
2
2
3
4
5
6
7
8
8
9
9
7
11
11
11
11
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
27
27
27
27
27
27
27
27
28
28
28
28
28
28
28
28
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
1
2
3
4
5
5
6
7
8
9
7
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
1
BOLT(10)
7515345
$10,49 Unit Price incl. VAT
2
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
3
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASM BRAKE (Incl. 2 5 7 8)
1910125
Not Available
8
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
9
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BRG.ASM O/P SHAFT
1590237
$114,44 Unit Price incl. VAT
11
SHAFT ASM O/P NDL BRG. Substituted by 2201115 (After Jan. 1 1997)
1590265
Not Available
12
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
13
BOLT(10)
7515321
Not Available
14
GUARD CHAIN CTR.
5431717
Not Available
15
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
16
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
17
SCREW
7515346
$10,49 Unit Price incl. VAT
18
BOLT(10)
7512269
Not Available
19
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
20
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
21
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
22
SPKT 11T
3221058
$115,49 Unit Price incl. VAT
23
RING RETAINING(10)
7710433
$9,44 Unit Price incl. VAT
24
DISC ASM BRAKE
1910177
Not Available
25
SEAL BRAKE
3610026
Not Available
26
NUT
7542449
$7,34 Unit Price incl. VAT
27
FITTING LUBE 45 DEG.(10)
7080586
Not Available
27
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
28
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
28
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
28
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
29
BOLT CARRIAGE(10)
7515484
Not Available
30
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
31
Sprocket 13T
3221041
$83,99 Unit Price incl. VAT
32
Nut
7542403
Not Available
33
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
34
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
35
BOLT(10)
7515485
$5,24 Unit Price incl. VAT
36
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
37
SEAL BRAKE
3610062
$17,84 Unit Price incl. VAT
38
FLANGETTE O/P SHAFT BRNG.
5242072
Not Available
39
BEARING NEEDLE
3554202
Not Available
40
HSG BRNG O/P SHAFT
5131643
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
