1
Engine displacement
500
2
Year
1997
3
Trim
500 EFI - 0973774
4
Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog

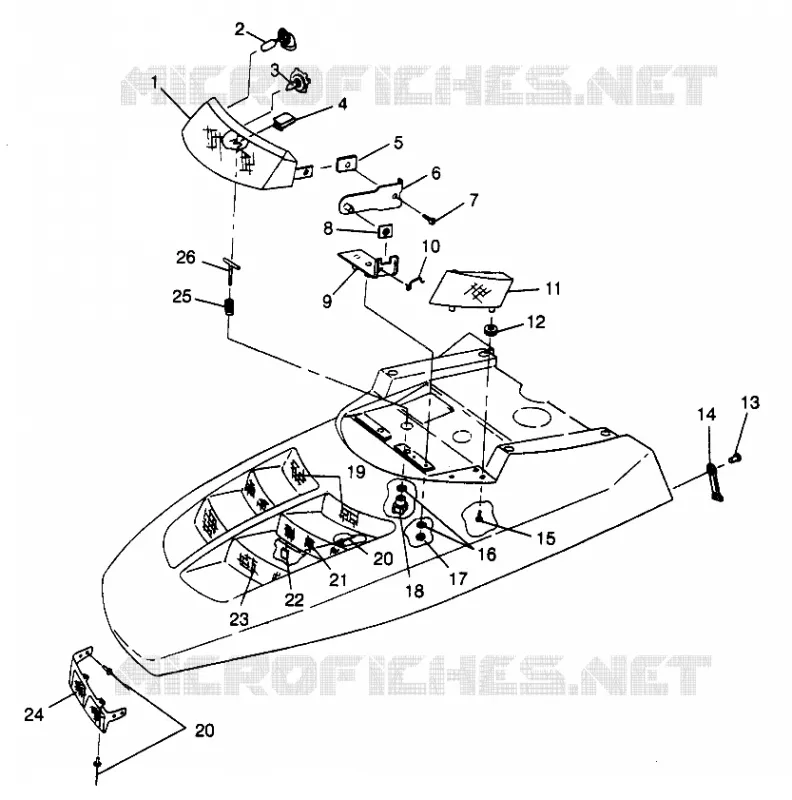

HOOD 500 EFI 0973774 (4938423842A010)
by
STEERING 500 EFI 0973774 (4938423842B003)
HOOD
1
2
3
4
5
6
7
8
9
9
9
9
10
10
10
10
11
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
1
H/L ASM 3-BULB (Incl. 2 3)
2431008
$179,54 Unit Price incl. VAT
2
BULB HI-BEAM
4030048
$47,24 Unit Price incl. VAT
3
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
4
CLIP-U TYPE
7670040
$7,34 Unit Price incl. VAT
5
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
6
MOUNT HEADLIGHT
1011944067
$47,24 Unit Price incl. VAT
7
BOLT(10)
7515107
Not Available
8
PIVOT HEADLIGHT
5431549
Not Available
9
BRKT RH H/L MT. BLK.
1011985067
Not Available
9
BRKT LH H/L MT. BLK.
1011984067
Not Available
10
RETAINER RH WIRE
5224501
Not Available
10
RETAINER LH WIRE
5224493
Not Available
11
LENS/REFLECTOR RH
5431856
Not Available
11
LENS/REFLECTOR LH
5431855
$120,74 Unit Price incl. VAT
12
BUSHING
5411110
Not Available
13
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
14
STRAP HOODLATCH
5431501
Not Available
15
SCREW
7511953
Not Available
16
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
17
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
18
KNOB H/L.ADJUST
7080501
Not Available
19
SCREEN UP.HD BLK.
5222908067
Not Available
20
RIVET(50)
7621339
$1,04 Unit Price incl. VAT
21
SCREEN CTR.HD BLK.
5222907067
Not Available
22
SPEEDCLIP #U#TYPE(10)
7670082
Not Available
23
SCREEN LOW.HD BLK
5241350067
$27,92 Unit Price incl. VAT
24
SCREEN FR. BLK.
1012031067
Not Available
25
SPRING HEADLIGHT ADJUST
7041308
$6,29 Unit Price incl. VAT
26
BOLT TEE ADJUSTER Substituted by 7517746
7515135
7517746
$36,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
