FRONT SUSPENSION FOR BRUTUS/HD/HD PTO - D131D9JDJ/1L9JDJ/2M9JDJ FROM 2013

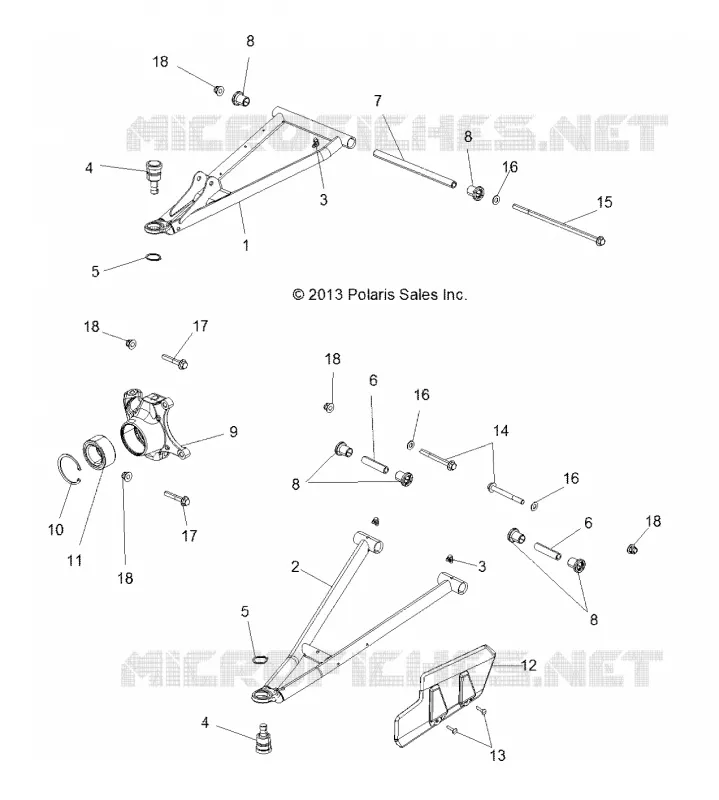

FRONT SUSPENSION

1

A-ARM FRONT UPPER LH MATTE BLACK [AC][AG][AQ][AR][AZ][EAB][EAR][EAG]

1018167458

$278,24 Unit Price incl. VAT

1

A-ARM FRONT UPPER RH MATTE BLACK [AC][AG][AQ][AR][AZ][EAB][EAR][EAG]

1018168458

$278,24 Unit Price incl. VAT

2

A-ARM FRONT LOWER RH MATTE BLACK

1019366458

$241,49 Unit Price incl. VAT

2

A-ARM FRONT LOWER LH MATTE BLACK

1019365458

$241,49 Unit Price incl. VAT

3

FITTING ZERK 90 DEGREE

7080510

$10,49 Unit Price incl. VAT

4

JOINT BALL [BUILT 9/14/15 AND BEFORE]

7081859

$89,24 Unit Price incl. VAT

5

RING-RETAINER EXTERNAL 1.188

7710533

$4,19 Unit Price incl. VAT

6

Tube Pivot

5136100

$27,29 Unit Price incl. VAT

7

Tube Pivot [Built 10/05/09 and After]

5137104

$52,49 Unit Price incl. VAT

8

BUSHING CONTROL ARM

5439730

$4,19 Unit Price incl. VAT

9

CARRIER BEARING FRONT LH

5138231

$188,99 Unit Price incl. VAT

9

CARRIER BEARING FRONT RH

5138232

$182,69 Unit Price incl. VAT

10

RING-RETAINING 2.875 INTERNAL

7710440

$18,89 Unit Price incl. VAT

11

BEARING-BALL SEALED 44X72X33.1

3514699

$73,49 Unit Price incl. VAT

12

SHIELD-CV FRONT RH BLK

5437545070

$47,24 Unit Price incl. VAT

12

SHIELD-CV FRONT LH BLK

5437544070

$47,24 Unit Price incl. VAT

13

RIVET 3/16(.063-.250)ST-ST-LF-B

7621472

$2,09 Unit Price incl. VAT

14

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$17,84 Unit Price incl. VAT

15

SCR-HXFL-M10X1.25X275 10.9 ZOD

7519087

$26,24 Unit Price incl. VAT

16

WASHER

7556153

$3,66 Unit Price incl. VAT

17

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$10,49 Unit Price incl. VAT

18

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
