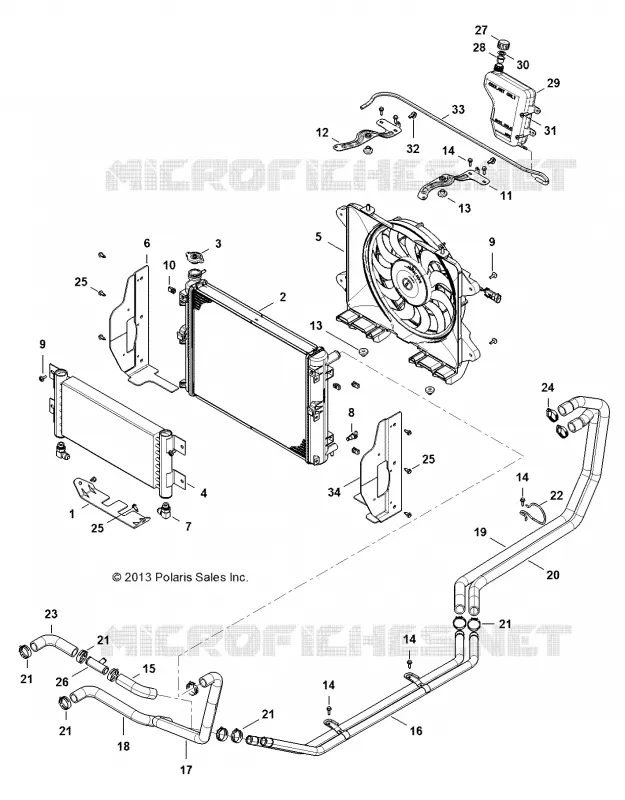

COOLING SYSTEM FOR BRUTUS/HD/HD PTO - D131D9JDJ/1L9JDJ/2M9JDJ FROM 2013

COOLING SYSTEM

1

SHROUD RADIATOR CENTER BLACK

5439647070

Not Available

2

RADIATOR CORE

1240690

$1 454,24 Unit Price incl. VAT

3

CAP

1240692

$73,49 Unit Price incl. VAT

4

COOLER OIL

1240723

$687,74 Unit Price incl. VAT

5

ASM. FAN SHROUD

2412474

$624,74 Unit Price incl. VAT

6

SHROUD RADIATOR FRONT RH BLACK

5439646070

$68,24 Unit Price incl. VAT

7

FITTING

3120080

$41,99 Unit Price incl. VAT

8

VALVE RADIATOR CORE DRAIN

7052557

$52,49 Unit Price incl. VAT

9

BOLT-M6X20MM

7519584

$17,84 Unit Price incl. VAT

10

CLIP-#U# M6.0X1.0

7547366

$9,44 Unit Price incl. VAT

11

MOUNT RADIATOR LH BLACK

5256596329

$89,24 Unit Price incl. VAT

12

MOUNT RADIATOR RH BLACK

5256597329

$89,24 Unit Price incl. VAT

13

GROMMET-FLANGED .36X.56X1.06

7052028

$11,54 Unit Price incl. VAT

14

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

15

HOSE LOWER TUBE [2P]

5414414

$68,24 Unit Price incl. VAT

16

ASM. COOLANT TUBE [BUILT 1/01/13 AND BEFORE]

1240662

$230,99 Unit Price incl. VAT

17

HOSE UPPER RADIATOR

5414293

$83,99 Unit Price incl. VAT

18

HOSE LOWER RADIATOR [1P]

5414294

$31,49 Unit Price incl. VAT

19

HOSE ENGINE IN

5414295

$220,49 Unit Price incl. VAT

20

HOSE ENGINE OUT

5414296

Not Available

21

SPRINGBAND-CLAMP 35/12 BLK

7080844

$19,94 Unit Price incl. VAT

22

HOSE RETAINER

7043806

Not Available

23

HOSE LOWER RADIATOR [2P]

5414415

$68,24 Unit Price incl. VAT

24

CLAMP-HOSE(WORM DR)25-40MM

7081192

$14,69 Unit Price incl. VAT

25

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

26

CONNECTOR-TEE 1X1X0.5

7052530

$10,49 Unit Price incl. VAT

27

CAP-OVER FLOW BOTTLE DRILLED

5430743

$10,49 Unit Price incl. VAT

28

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$10,49 Unit Price incl. VAT

29

TANK-SURGE

5439202

$178,49 Unit Price incl. VAT

30

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

31

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$9,44 Unit Price incl. VAT

32

CLIP-SILENCER BOX-C 98 INDY

7670102

$4,19 Unit Price incl. VAT

33

FUEL LINE-95 CENTIMETERS

845000395

$136,49 Unit Price incl. VAT

34

SHROUD RADIATOR FRONT LH BLACK

5439294070

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
