1
Engine displacement
500
2
Year
1997
3
Trim
SPORTSMAN 500 - W97CH50A
4
Parts Catalog

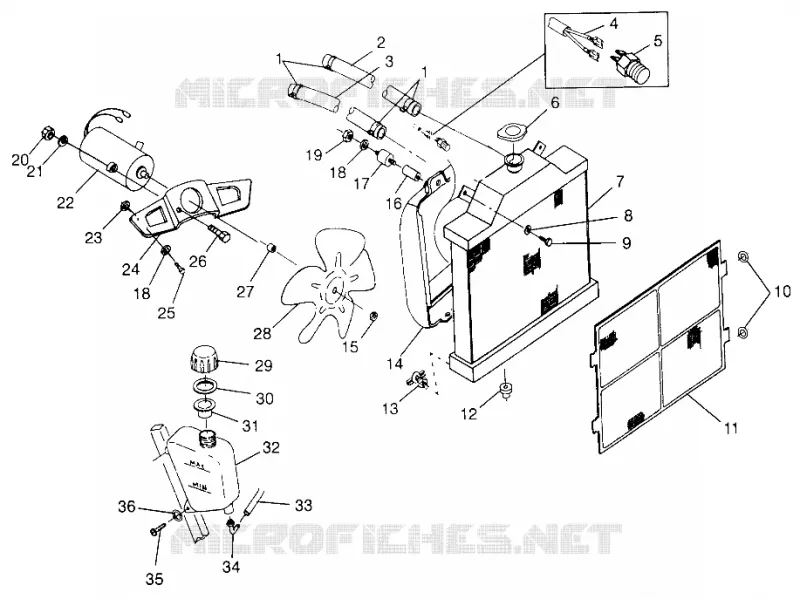

COOLING SYSTEM SPORTSMAN 500 W97CH50A (4939993999A013)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SPORTSMAN 500 W97CH50A (4939993999A011)
by
EXHAUST SYSTEM SPORTSMAN 500 W97CH50A (4939993999A014)
COOLING SYSTEM SPORTSMAN 500 W97CH50A (4939993999A013)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
2
HOSE WATER 305 CM.
8450050305
Not Available
3
HOSE-LOWER ENGINE
5411072
Not Available
4
HARNESS FAN/THERM.SWITCH
2460515
Not Available
5
SWITCH THERMAL FAN L/C
4110225
Not Available
6
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
7
RADIATOR #U#FLOW
1240015
Not Available
8
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
9
BOLT
7512113
$7,34 Unit Price incl. VAT
10
O-Ring
5410607
Not Available
11
COVER RADIATOR W/MESH
5431760
Not Available
12
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
13
VALVE DRAIN COCK
7052181
Not Available
14
SHROUD FAN (ATV) Substituted by 5432593
5432356
Not Available
15
NUT
7542154
Not Available
16
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
17
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
18
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
19
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
20
NUT-8-32 HX LK GR A-Y
7541915
Not Available
21
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
22
MOTOR FAN LIQ.COOLED
4170009
Not Available
23
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
24
BRKT.COOL.FAN BLK
5241355067
Not Available
25
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
26
SCR-PHPHD-8-32X0.75 GR2 ZY3
7511875
$9,44 Unit Price incl. VAT
27
SPACER
5333457
Not Available
28
BLADE FAN
5240822
$92,28 Unit Price incl. VAT
29
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
30
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
31
PLUG CAP Substituted by 5433774
5431895
5433774
$10,49 Unit Price incl. VAT
32
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
33
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
34
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
35
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
36
WASHER
7555799
7558201
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
