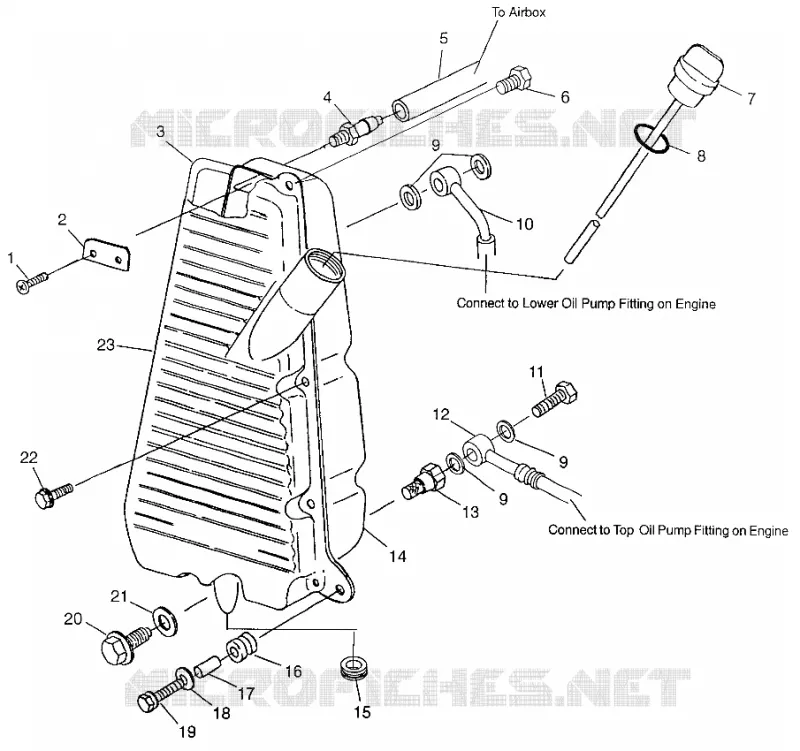

OIL TANK SPORTSMAN 500 W97CH50A (4939993999B014)
5
Parts Diagram
Parts Catalog
STEERING POST SPORTSMAN 500 W97CH50A (4939993999B013)
by
FRAME
OIL TANK SPORTSMAN 500 W97CH50A (4939993999B014)
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
2
PLATE VENT OIL TANK
5211523
$22,46 Unit Price incl. VAT
3
GASKET OIL RESERVOIR
5830053
$78,74 Unit Price incl. VAT
4
Fitting
7052163
Not Available
5
LINE BREATHER 120CM SPL
5411349
Not Available
6
PLUG
7051535
Not Available
7
DIPSTICK
5432289
Not Available
8
O RING
5410889
Not Available
9
WASHER COPPER 14MM.
7555896
$2,61 Unit Price incl. VAT
10
TUBE BANJO RETURN
7052109
Not Available
11
BOLT
7517102
Not Available
12
TUBE BANJO INTAKE
7052133
Not Available
13
SCREEN-OIL FILTER BANJO
2530020
Not Available
14
TANK OIL LH
5131323
Not Available
15
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
16
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
17
Bushing
5333204
$41,99 Unit Price incl. VAT
18
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
19
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
20
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
21
WASHER
5850135
$5,76 Unit Price incl. VAT
22
Screw
7515158
$9,44 Unit Price incl. VAT
23
TANK OIL RH (Side Drain)
5131255
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
