1
Engine displacement
500
2
Year
1997
3
Trim
SPORTSMAN 500 - W97CH50A
4
Parts Catalog

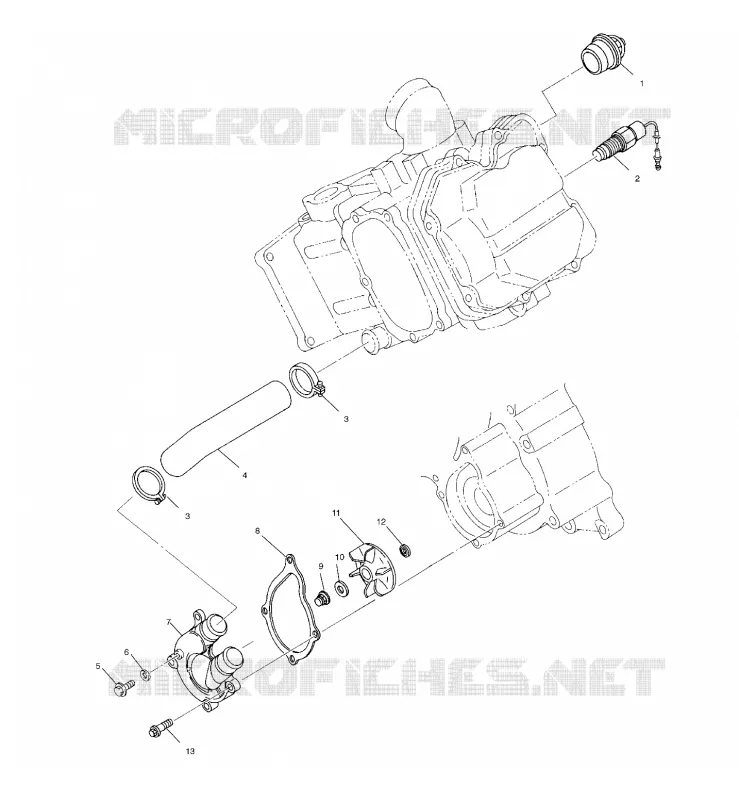

WATER PUMP
5
Parts Diagram
Parts Catalog
CARBURETOR
by
OIL PUMP
WATER PUMP
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
THERMOSTAT *
3084940
$173,24 Unit Price incl. VAT
2
SWITCH THERMO. *
3085352
$241,49 Unit Price incl. VAT
3
CLAMP HOSE Substituted by 3086774
3084191
Not Available
4
HOSE MAIN Substituted by 3085857
3084938
Not Available
5
BOLT FLANGE
3085359
$4,19 Unit Price incl. VAT
6
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
7
COVER WATER PUMP
3085351
Not Available
8
GASKET WATER PUMP Substituted by 3086840
3084937
$12,59 Unit Price incl. VAT
9
NUT SELF-LOCK
3085077
$17,84 Unit Price incl. VAT
10
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
11
IMPELLER WATER PUMP
3084935
$73,49 Unit Price incl. VAT
12
WASHER SEAL
3084942
Not Available
13
BOLT FLANGE(10)
3084877
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
