1
Engine displacement
500
2
Year
1997
3
Trim
SPORTSMAN 500 - W97CH50A
4
Parts Catalog

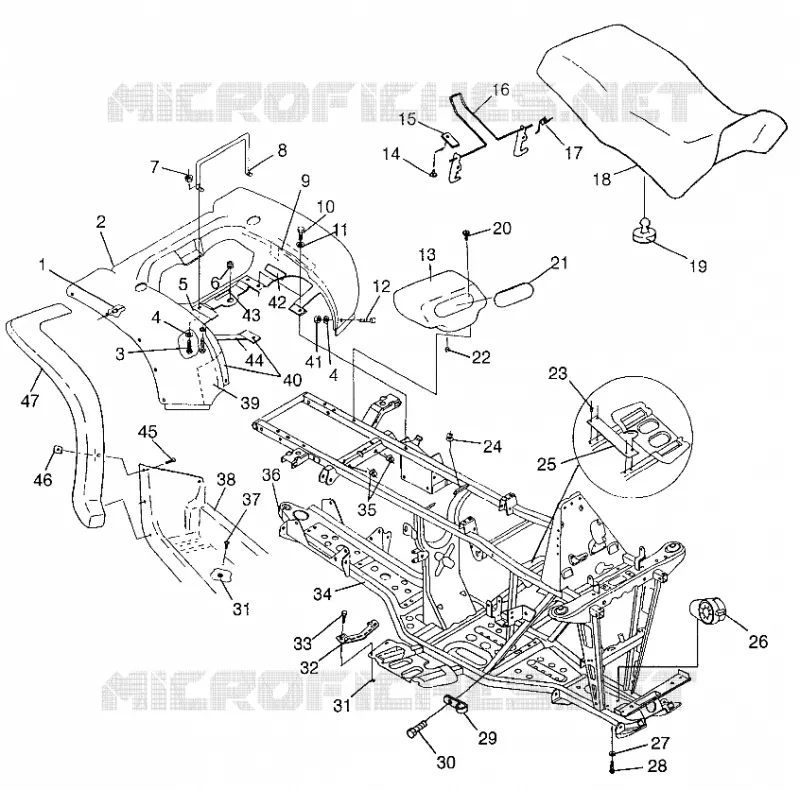

REAR CAB SEAT SPORTSMAN 500 W97CH50A (4939993999A005)
5
Parts Diagram
Parts Catalog
TOOL KIT SPORTSMAN 500 W97CH50A (4939993999E003)
by
ENGINE MOUNTING SPORTSMAN 500 W97CH50A (4939993999A011)
REAR CAB SEAT SPORTSMAN 500 W97CH50A (4939993999A005)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
38
38
38
39
40
41
42
43
44
45
46
47
47
47
47
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
38
38
38
39
40
41
42
43
44
45
46
47
47
47
47
1
Rivet
7661645
Not Available
2
CAB REAR GEN 4 OLV.GRN.
5432117191
Not Available
3
BOLT
7511930
$4,19 Unit Price incl. VAT
4
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
5
Foil Rear Cab Rear
5811107
Not Available
6
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
7
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
Retainer Seat Latch
5224592
Not Available
9
FOIL TAPE RR CAB 3x12
5811308
$26,24 Unit Price incl. VAT
10
Screw
7515180
Not Available
11
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
12
Screw
7512085
Not Available
13
Box Tool
5431786
$85,88 Unit Price incl. VAT
14
BLIND RIVET(50)
7621403
$2,09 Unit Price incl. VAT
15
Bracket Lever Retainer
5211033
$52,49 Unit Price incl. VAT
16
Latch Seat
1040387
$89,24 Unit Price incl. VAT
17
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
18
Covering Seat
2681747070
2684055
$278,24 Unit Price incl. VAT
18
FOIL SEATBASE LG.
5811104
Not Available
18
SEAT ASM BLK Substituted by 2682441-070 (400) (Incl. 13-18)
2682201070
2683222-070
$824,24 Unit Price incl. VAT
18
FOIL SEATBASE SM.
5811105
$15,95 Unit Price incl. VAT
19
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
20
Screw
7517375
7517312
$2,09 Unit Price incl. VAT
21
Cover Tool Box
5431787
Not Available
22
Cap Drain
5410896
$10,49 Unit Price incl. VAT
23
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
24
NUT WELL
7541923
$10,49 Unit Price incl. VAT
25
GUARD-CLUTCH BLK
5241403067
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
28
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
29
CLAMP HOSE 1# NYLON
7080653
$9,44 Unit Price incl. VAT
30
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
31
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
32
SPACER FOOTWELL
5432280
$16,79 Unit Price incl. VAT
33
SCREW
7517377
$9,44 Unit Price incl. VAT
34
FRAME MAIN BLK
1040439067
Not Available
35
GROMMET
5410770
Not Available
36
DECAL HITCH Substituted by 7078261
7072533
Not Available
37
SCREW Substituted by 7512279
7517376
7512279
$1,56 Unit Price incl. VAT
38
Footwell Black LH
5432221070
$430,49 Unit Price incl. VAT
38
FOOTWELL RH BLK NYLON Substituted by 5433219-070
5432118070
$430,49 Unit Price incl. VAT
39
Foil Foam Rear Fender
5811111
$62,99 Unit Price incl. VAT
40
Foil Rear Cab Front
5811106
$16,79 Unit Price incl. VAT
41
NUT LOCK(10) Substituted by 7541925
7541929
7541925
$1,56 Unit Price incl. VAT
42
DECAL CARB.INFO.
7073761
Not Available
43
DECAL FILTER ELEMENT [No Longer Available]
7072791
Not Available
44
Foil Foam
5811087
Not Available
45
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
46
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
47
MUDGUARD RH R.BLK. Substituted by 5431797-070
5431797
Not Available
47
MUDGUARD LH R.BLK. Substituted by 5431796-070
5431796
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
