1
Engine displacement
0
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
CRANKCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440031)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440026)
by
CYLINDER MANIFOLD ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440032)

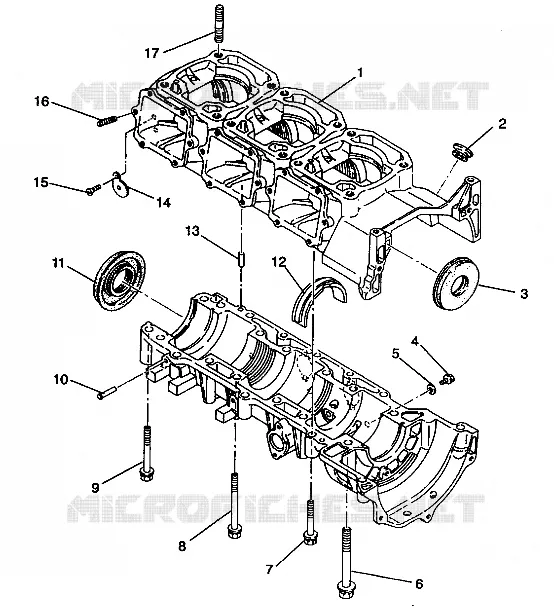

CRANKCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440031)
1
CRANKCASE ASM. (Incl. 6-10 13-17)
3084641
$794,84 Unit Price incl. VAT
2
GROMMET
3082875
$13,64 Unit Price incl. VAT
3
SEAL OIL
3240041
Not Available
4
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
5
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
6
BOLT&WASHER ASM.
3084521
Not Available
7
BOLT AND WASHER ASSY.
3082097
Not Available
8
BOLT-WASHER
3082923
Not Available
9
BOLT W/WASHER
3080739
$11,54 Unit Price incl. VAT
10
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
11
SEAL OIL
3084522
$51,54 Unit Price incl. VAT
12
SPACER CASE
3084642
Not Available
13
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
14
PLATE (CASE 1)
3084643
Not Available
15
SCREW COUNTERSUNK
3081180
Not Available
16
STUD Substituted by 3086772
3084520
Not Available
17
STUD
3084519
$19,83 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
