1
Engine displacement
0
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
CHAINCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440019)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440018)
by
DRIVE TRAIN ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440020)

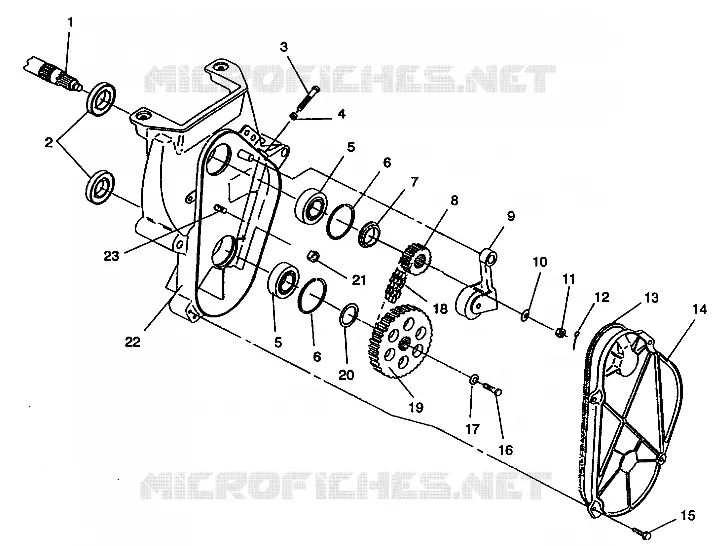

CHAINCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440019)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
4
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
5
BEARING W/O SEAL
3514304
$27,29 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
Not Available
8
SPKT 23T (13W) (13W)
3221057
Not Available
8
SPKT 21T (13W) (13 Wide)
3221054
Not Available
9
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
12
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
13
GASKET-CHAINCASE
5410277
Not Available
14
COVER CHAINCASE Substituted by 5630968
5630413
Not Available
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
17
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
18
CHAIN 66P (13W) SILENT (13 Wide)
3224051
Not Available
19
SPKT 37T 13W (13W)
3222056
Not Available
20
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
21
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
22
CHAINCASE TOP MNT.BRAKE
5130849
Not Available
23
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
