1
Engine displacement
0
2
Year
1994
3
Trim
EURO STORM SKS - E940582
4
Parts Catalog
NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440006)
5
Parts Diagram
Parts Catalog
NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440005)
by
MASTER CYLINDER STORM E940782 AND STORM SKS E948582 (49274427440012)

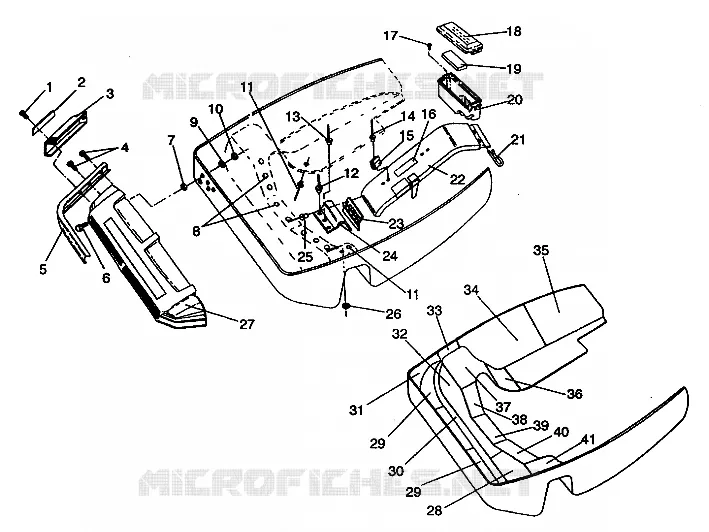

NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440006)
1
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
2
EMBLEM#POLARIS#SILVER
5430979092
Not Available
3
CAP BUMPER BLK.
5430930070
Not Available
4
SCREW(10)
7512102
$6,29 Unit Price incl. VAT
5
BUMPER FRONT Substituted by 5224517-067
5224333067
$208,94 Unit Price incl. VAT
6
SCREW
7512279
$1,56 Unit Price incl. VAT
7
CAP TOWER
5020517
Not Available
8
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
9
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
10
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
11
RIVET
7621467
$2,09 Unit Price incl. VAT
12
RIVET
7621435
$2,09 Unit Price incl. VAT
13
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
14
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
15
CLIP BELT RETAINER
5222769
$15,74 Unit Price incl. VAT
16
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
17
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
18
COVER TOOL BOX
5430719
$62,99 Unit Price incl. VAT
19
FOAM - TOOL BOX
5810266
Not Available
20
BOX TOOL
5430716
$20,99 Unit Price incl. VAT
21
PIN RETAINING (10)
7080216
7080698
$17,84 Unit Price incl. VAT
22
GUARD CLUTCH EURO
1012042
Not Available
23
HINGE
5210728
Not Available
24
BRACKET HINGE Substituted by 5241437
5220406
Not Available
25
RIVET
7621330
$2,09 Unit Price incl. VAT
26
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
27
CONE NOSE BLK.METAL.
54309311034
Not Available
28
TAPE FOIL PAN#11.
5810833
Not Available
29
TAPE FOIL PAN#10
5810832
Not Available
30
TAPE FOIL PAN#16
5810839
Not Available
31
TAPE FOIL PAN#13
5810835
Not Available
31
TAPE FOIL PAN#14
5810836
Not Available
32
TAPE FOIL PAN#2
5810492
Not Available
33
TAPE FOIL PAN#8
5810498
$2,19 Unit Price incl. VAT
34
TAPE FOIL PAN#7
5810497
Not Available
35
FOIL-TAPE
5810108
$52,49 Unit Price incl. VAT
36
TAPE FOIL PAN#15
5810838
Not Available
37
TAPE FOIL PAN#6 Substituted by 5811723
5810496
Not Available
38
TAPE FOIL PAN#4
5810494
Not Available
39
TAPE FOIL PAN#5
5810495
$12,59 Unit Price incl. VAT
40
TAPE FOIL PAN#3
5810493
Not Available
41
TAPE FOIL PAN#12
5810834
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
