1
Engine displacement
500
2
Year
2008
3
Trim
500 WIDETRAK LX
4
Parts Catalog

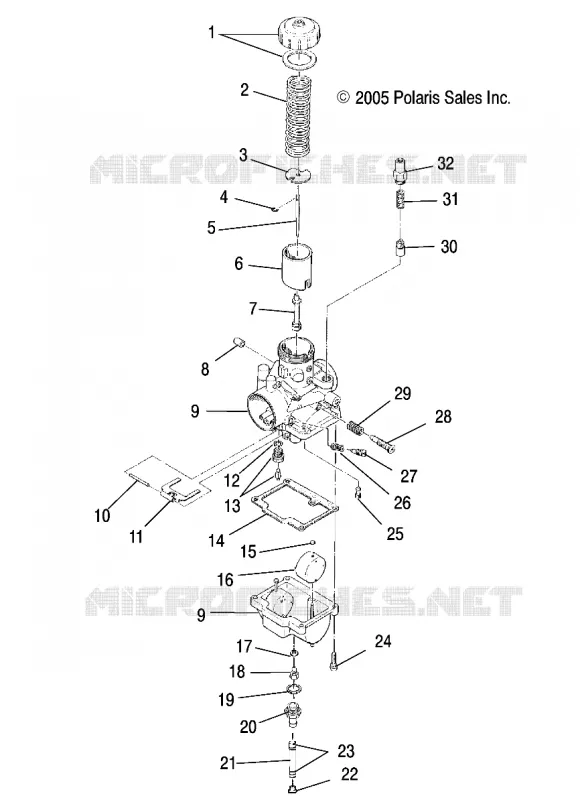

ENGINE, CARBURETOR
5
Parts Diagram
Parts Catalog
by
CRANKCASE
ENGINE, CARBURETOR
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E-RING
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET (6EJ26) (6EJ3-3)
3130423
$47,24 Unit Price incl. VAT
6
VALVE THROTTLE 3.0
3130372
$104,99 Unit Price incl. VAT
7
JET NEEDLE (P-6)
3130160
$73,49 Unit Price incl. VAT
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CARBURETOR (Incl. 1-20 25-33)
3130711
$818,99 Unit Price incl. VAT
10
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
11
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
12
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
13
NEEDLE VALVE 1.5
3131146
$99,74 Unit Price incl. VAT
14
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
15
CAP
3130237
$8,39 Unit Price incl. VAT
16
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
17
WASHER
3130014
$3,14 Unit Price incl. VAT
18
JET MAIN HX.HD.#195(10) (#195)
3130122
$13,64 Unit Price incl. VAT
19
O-RING
3130239
Not Available
20
NIPPLE
3130573
$68,24 Unit Price incl. VAT
21
Hose Fuel [SVC]
845012340
8450123-153
$157,49 Unit Price incl. VAT
22
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
23
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
24
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
25
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
26
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
27
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
28
SCREW THROTTLE STOP
3130437
$36,74 Unit Price incl. VAT
29
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
30
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
31
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
32
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
