1
Engine displacement
500
2
Year
2008
3
Trim
500 WIDETRAK LX
4
Parts Catalog

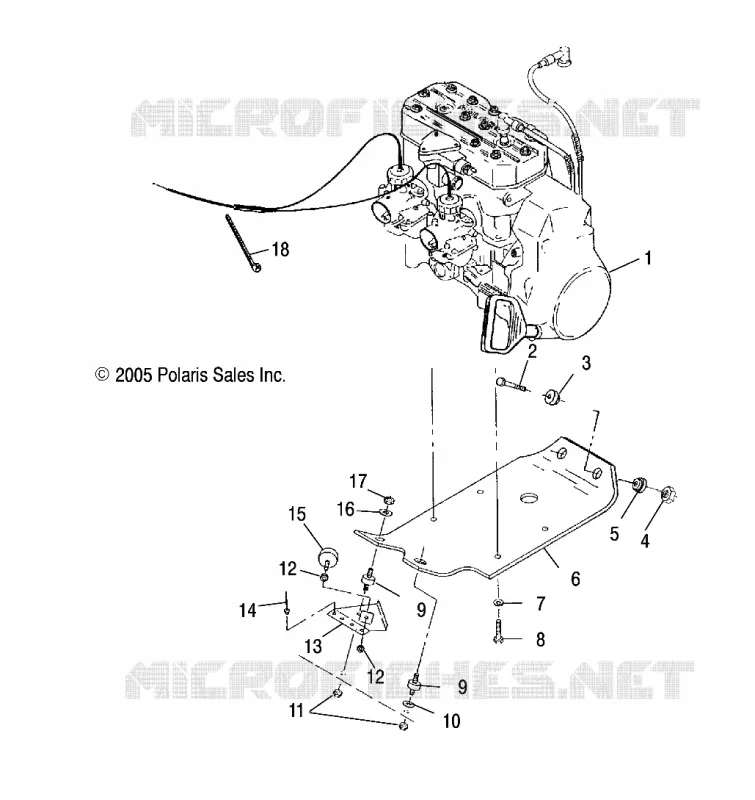

ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
MAGNETO
by
OIL PUMP
ENGINE, MOUNTING
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
1
ENGINE-EC50PL230 SB (EC50PL230) (See Footnote)
3086509
Not Available
2
SCREW
7512530
$10,49 Unit Price incl. VAT
3
MOUNT ENGINE RUBBER TOP
5411685
$47,24 Unit Price incl. VAT
4
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
5
MOUNT ENGINE RUBBER BOTTOM
5411686
$52,49 Unit Price incl. VAT
6
PLATE MOTOR MT.
5242496
$230,99 Unit Price incl. VAT
7
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
8
BOLT
7512539
$7,34 Unit Price incl. VAT
9
MOUNT ENGINE
3110061
$125,99 Unit Price incl. VAT
10
WASHER
7555915
$6,29 Unit Price incl. VAT
11
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
12
NUT-3/8-16 HX THIN-Y
7542414
$9,44 Unit Price incl. VAT
13
LIMITER TORQUE
1012048067
$62,99 Unit Price incl. VAT
14
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
15
STOP TORQUE
3110063
$47,24 Unit Price incl. VAT
16
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
17
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
18
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
