1
Engine displacement
500
2
Year
2008
3
Trim
500 WIDETRAK LX
4
Parts Catalog

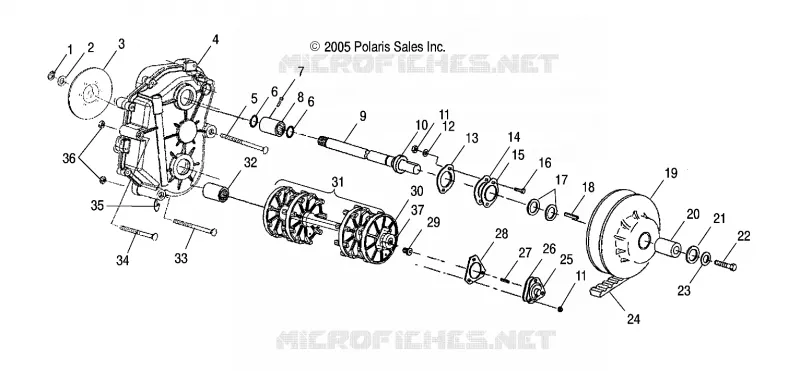

DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT
5
Parts Diagram
Parts Catalog
SEAT ASM.
by
IFS SHOCK
DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT
21
22
23
24
25
25
26
27
28
29
30
31
32
32
33
34
35
35
35
35
36
37
1
RING RETAINING
7713401
7710436
$9,44 Unit Price incl. VAT
2
BUSHING
7555922
$11,54 Unit Price incl. VAT
3
Asm. Brake Disc
1911317
$398,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOLT CARRIAGE [.38 X 6.12]
7517291
$23,09 Unit Price incl. VAT
6
O-RING
5410630
$3,66 Unit Price incl. VAT
7
SCREW
7517446
$15,74 Unit Price incl. VAT
8
ASM. COUPLER W/GREASE [INCL. FITTING & SCREW]
1332219
$220,49 Unit Price incl. VAT
8
FITTING LUBRICATION
7080437
$26,24 Unit Price incl. VAT
9
ASM. JACKSHAFT [INCL. 7]
1332256
$713,99 Unit Price incl. VAT
10
BEARING
3514525
$54,59 Unit Price incl. VAT
11
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
13
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
14
GASKET JACKSHAFT 2-BOLT
5830135
$5,24 Unit Price incl. VAT
15
FLANGETTE W/GREASE GROOVE 2-BOLT
5222647
$47,24 Unit Price incl. VAT
16
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
18
KEY
7721132
$41,99 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SPACER INLET SHAFT
5431482
$31,80 Unit Price incl. VAT
21
WASHER
7555806
$1,56 Unit Price incl. VAT
22
BOLT(10)
7515502
$10,49 Unit Price incl. VAT
23
WASHER SPRING(10)
7571626
Not Available
24
BELT DRIVE
3211070
$147,51 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
25
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
26
GASKET
5830012
$4,19 Unit Price incl. VAT
27
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
28
FLANGETTE OFFSET W/HOLE
5243529
$26,24 Unit Price incl. VAT
29
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
30
ASM. FLANGETTE W/SCREWS
1012945
$173,24 Unit Price incl. VAT
31
Asm. Drive Shaft [Incl.29-31]
1590450
$939,74 Unit Price incl. VAT
32
ASM. COUPLER W/GREASE ZERK
1332260
$325,49 Unit Price incl. VAT
32
FITTING LUBRICATION
7080437
$26,24 Unit Price incl. VAT
33
BOLT CARRIAGE [.38 X 4.25]
7517292
$36,74 Unit Price incl. VAT
34
BOLT CARRIAGE [.38 X 3.5]
7518360
$6,29 Unit Price incl. VAT
35
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
35
SHIM CHAINCASE .063
5210759
$6,29 Unit Price incl. VAT
35
SHIM CHAINCASE .080
5210760
$6,29 Unit Price incl. VAT
35
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
36
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
37
BEARING
3514448
3514617
$54,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
