TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006)
5
Parts Diagram
Parts Catalog
by
SEAT GAS TANK ASSEMBLY RXL TOURING 0950869 (4928982898A008)

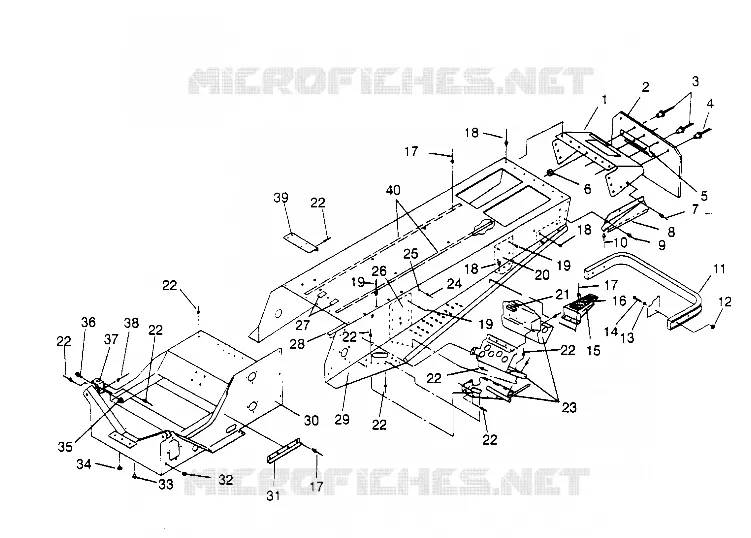

TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
15
15
15
16
16
16
16
17
17
17
18
18
18
19
19
19
20
20
20
20
21
22
22
22
22
22
22
22
22
22
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
CLOSE-OFF ASM REAR BLK. (SKS)(Incl. Rivets)
1012232067
Not Available
2
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
3
RIVET(50)
7661641
Not Available
4
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
5
RETAINER FLAP Substituted by 5241874-067 (Touring Only)
5222659067
Not Available
6
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
8
SKIRT LH SNOW BLK.
5431627070
Not Available
8
SKIRT RH SNOW BLK.
5431645070
$50,28 Unit Price incl. VAT
9
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
10
RIVET (50)
7621336
$3,14 Unit Price incl. VAT
11
BUMPER R.SKS EFI (SKS)
5224349067
Not Available
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
14
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
15
FOOTREST LH R BLK.
5220893067
Not Available
15
FOOTREST RH R BLK.
5220894067
$51,54 Unit Price incl. VAT
16
PAD LH FOOT SAFETY
5830007
$10,70 Unit Price incl. VAT
16
PAD RH FOOT SAFETY
5830008
Not Available
17
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
18
RIVET (50)
7661829
Not Available
19
RIVET (50)
7661825
$1,04 Unit Price incl. VAT
20
BRKT RH.REAR SUSP. (SKS)
1011906067
Not Available
20
BRKT LH.REAR SUSP (SKS)
1011905067
Not Available
21
EXTRUSION CLUTCH GUARD
5521238
$12,59 Unit Price incl. VAT
22
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
23
FOOTREST ASM RH
1011862
Not Available
23
FOOTREST ASM LH
1011861
Not Available
24
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
25
SNAP-MALE(10)
7080227
Not Available
26
BRACKET SUSPENSION FRONT BLACK
5211323067
$47,24 Unit Price incl. VAT
27
DECAL TOP TUNNEL STRIP
7073978
Not Available
28
BRACE TUNNEL REINF. Substituted by 5240242
5240265
Not Available
29
TUNNEL ASM ROTATED
1012274
Not Available
30
DESC NOT_AVAILABLE
1012275
Not Available
31
GUARD
5223789
Not Available
32
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
33
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
34
BUSHING OPEN/CLOSE(10)
7080399
Not Available
35
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
36
SCREW
7512307
$7,34 Unit Price incl. VAT
37
SUPPORT MUFFLER BLK. Substituted by 5242798-067
1011831067
Not Available
38
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
39
BRKT TOOL BOX
5220973
Not Available
40
MOUNT WEAR STRIP
5131009
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
