SUSPENSION ASSEMBLY RXL TOURING 0950869 (4928982898B011)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY RXL TOURING 0950869 (4928982898B009)
by
FRONT TORQUE ARM RXL TOURING 0950869 (4928982898B013)

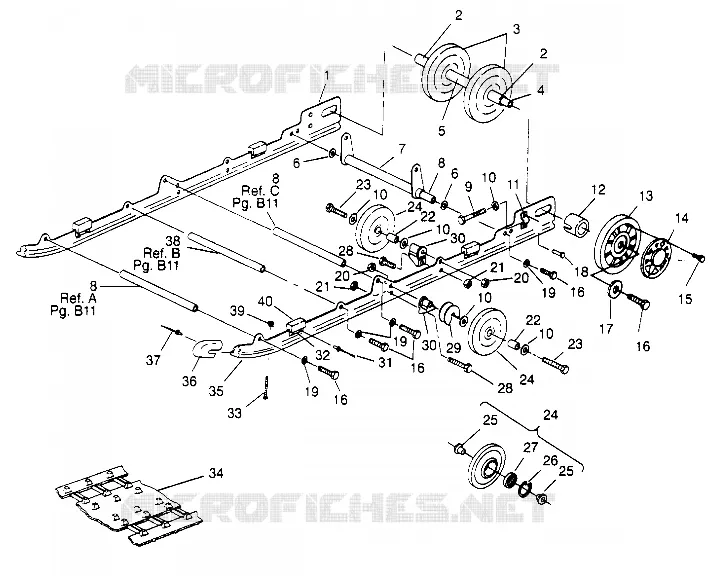

SUSPENSION ASSEMBLY RXL TOURING 0950869 (4928982898B011)
1
1
2
2
3
4
5
6
6
7
8
8
8
9
10
10
10
10
10
11
12
13
14
15
16
16
16
16
17
18
19
19
19
20
20
21
21
22
22
23
23
24
24
24
25
25
26
27
28
28
29
30
30
31
32
33
34
35
36
37
38
39
40
1
1
1
1
1
2
3
4
5
6
6
6
6
6
7
8
9
10
10
11
11
12
12
12
12
12
12
13
14
15
16
17
1
RAIL ASM LH (SKS XC-100) (Incl. 12 33 36 40)
1540802
Not Available
1
RAIL ASM RH (SKS XC-100) (Incl. 12 33 36 40) (SKS)
1540803
Not Available
2
SPACER INNER IDLER
5010169
Not Available
3
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
4
SHAFT IDLER
5020722
Not Available
5
SPACER CTR IDLER
5010168
Not Available
6
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
7
ARM REAR PIVOT
1540677067
Not Available
8
SHAFT PIVOT ARM
5020723
$47,24 Unit Price incl. VAT
9
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
Not Available
13
WHEEL OUTER W/HOLES Substituted by 1594021 (600 SE)
1594035
Not Available
14
COVER IDLER WHL. (600 SE)
5220442
$41,04 Unit Price incl. VAT
15
SCREW WHL.COVER(SE)(10)
7511853
Not Available
16
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
17
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
18
RIVET
7621501
$4,19 Unit Price incl. VAT
19
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
20
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
21
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
22
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
23
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
24
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
25
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
26
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
27
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
28
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
29
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
30
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
31
RIVET
7621476
$2,09 Unit Price incl. VAT
32
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
33
SCREW
7512227
$6,29 Unit Price incl. VAT
34
TRACK 133# CLIP
5410823
Not Available
35
SLIDER BLACK(2) (Black) (500 Classic Only)
5521320
Not Available
36
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
37
RIVET
7621435
$2,09 Unit Price incl. VAT
38
SHAFT PIVOT ARM
5020724
$47,24 Unit Price incl. VAT
39
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
40
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
