1
Engine displacement
0
2
Year
1995
3
Trim
RXL TOURING - 0950869
4
Parts Catalog

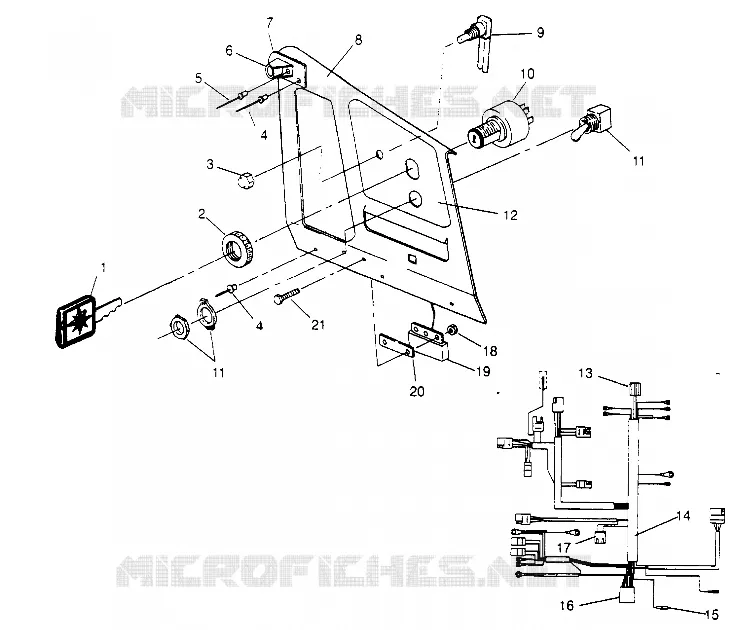

CONSOLE RXL TOURING 0950869 (4928982898C009)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH ASSEMBLY RXL TOURING 0950869 (4928982898C004)
by
CRANKCASE ASSEMBLY RXL TOURING 0950869 (4928982898C010)
CONSOLE RXL TOURING 0950869 (4928982898C009)
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
1
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
2
NUT IGN.SWITCH(10)
7543101
Not Available
3
BOOT SW. O#RIDE
7080412
Not Available
4
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
5
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
6
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
7
BRKT ROPE GUIDE BLK.
5222682067
Not Available
8
CONSOLE
5222757067
Not Available
9
HARNESS SW ELEC.ENRICH
2460364
Not Available
10
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
11
SW HEATER HI-LOW (650 & 500 Classic Only)
4110077
Not Available
12
DECAL CONSOLE EFI/ES. (Touring)
7074256
Not Available
13
HOUSING RECEPTACLE
4020062
Not Available
14
HARNESS MAIN(RXL TRNG 94)
2460437
Not Available
15
CONNECTOR TACH.
2200094
Not Available
16
HOUSING W/RECEPTACLES
2200039
Not Available
17
CONNECTOR BRAKE SWITCH
4020112
Not Available
18
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
19
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
20
HEAT SINK
5210650
Not Available
21
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
