ELECTRICAL, IGNITION SYSTEM FOR SCRAMBLER 1000 MD FROM 2017

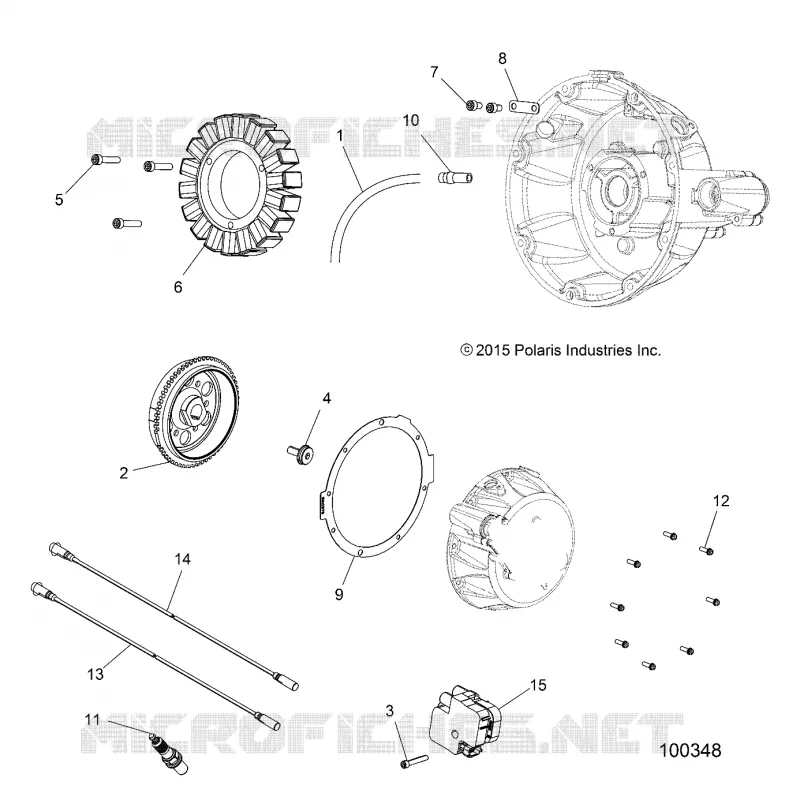

ELECTRICAL, IGNITION SYSTEM

1

TUBING NYLON

8360077

$27,29 Unit Price incl. VAT

2

FLYWHEEL 560 WATT [TO 8/30/2023]

4015585

$498,74 Unit Price incl. VAT

3

SCREW 1.50

7517566

$7,34 Unit Price incl. VAT

4

BOLT WATER PUMP DRIVE LH

5140078

$57,74 Unit Price incl. VAT

5

SCREW

7518544

$5,24 Unit Price incl. VAT

6

STATOR 560W

4014406

$944,99 Unit Price incl. VAT

7

SCREW

7518765

$9,44 Unit Price incl. VAT

8

RETAINER STATOR WIRE

5261146

$10,49 Unit Price incl. VAT

9

GASKET STATOR COVER

5813680

$73,49 Unit Price incl. VAT

10

FITTING

7052463

$17,84 Unit Price incl. VAT

11

SPARKPLUG 12MM

3022553

$15,74 Unit Price incl. VAT

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$6,29 Unit Price incl. VAT

13

WIRE SPARK PLUG MAG

4014007

$104,99 Unit Price incl. VAT

14

WIRE SPARK PLUG PTO

4013328

$115,49 Unit Price incl. VAT

15

COIL-EFI

4010425

$451,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
