1
Engine displacement
1000
2
Year
2017
3
Trim
SCRAMBLER 1000 MD
4
Parts Catalog
FRONT SUSPENSION A-ARMS
5
Parts Diagram
Parts Catalog
STEERING, STEERING POST ASM.
by
BODYWORK

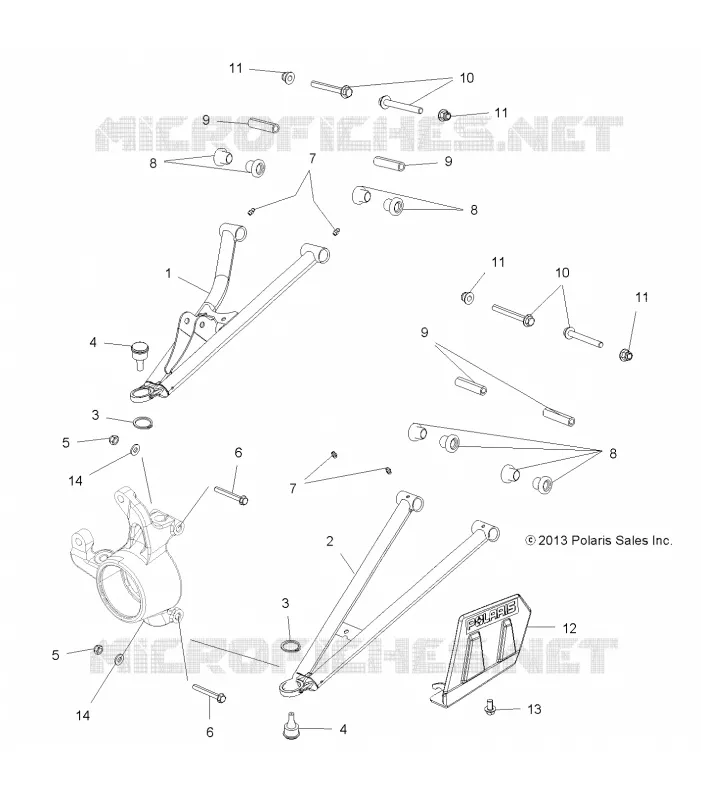

FRONT SUSPENSION A-ARMS
1
1
1
1
2
2
2
2
3
3
4
4
5
5
5
6
7
7
8
8
8
9
9
9
10
10
11
11
11
11
12
12
13
14
14
1
WELD-UCA FRONT LH BLK
1019808067
1025617-067
$241,49 Unit Price incl. VAT
1
WELD-UCA FRONT RH BLK
1019809067
1025618-067
$241,49 Unit Price incl. VAT
1
ARM CONTROL UPPER FRONT RH CLOUD SILVER
1019809385
1025618-385
$225,74 Unit Price incl. VAT
1
ARM CONTROL UPPER FRONT LH CLOUD SILVER
1019808385
$241,49 Unit Price incl. VAT
2
ARM CONTROL LOWER FRONT BLACK RH
1019811067
$241,49 Unit Price incl. VAT
2
ARM CONTROL LOWER FRONT CLOUD SILVER LH
1019810385
Not Available
2
ARM CONTROL LOWER FRONT BLACK LH
1019810067
$241,49 Unit Price incl. VAT
2
ARM CONTROL LOWER FRONT CLOUD SILVER RH
1019811385
Not Available
3
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
4
JOINT BALL LONG STUD
7061220
$141,74 Unit Price incl. VAT
5
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
6
SCREW M8x65
7519212
$9,44 Unit Price incl. VAT
7
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
8
ASM-BUSHING HD W/SEAL 5.23 FLG [OPTIONAL]
1543367
$19,94 Unit Price incl. VAT
9
SHAFT A-ARM 63.5MM
5137346
$31,49 Unit Price incl. VAT
10
SCR-HXFL-M10X1.5X85 8.8 ZY3
7518466
$9,44 Unit Price incl. VAT
11
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
12
SHIELD CV FRONT RH CLOUD SILVER
5436658070
$26,24 Unit Price incl. VAT
12
SHIELD CV FRONT LH CLOUD SILVER
5436657070
$26,24 Unit Price incl. VAT
13
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
14
WASHER FLAT
7556557
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
