WHEELS, REAR AND HUB FOR SCRAMBLER 1000 MD FROM 2017

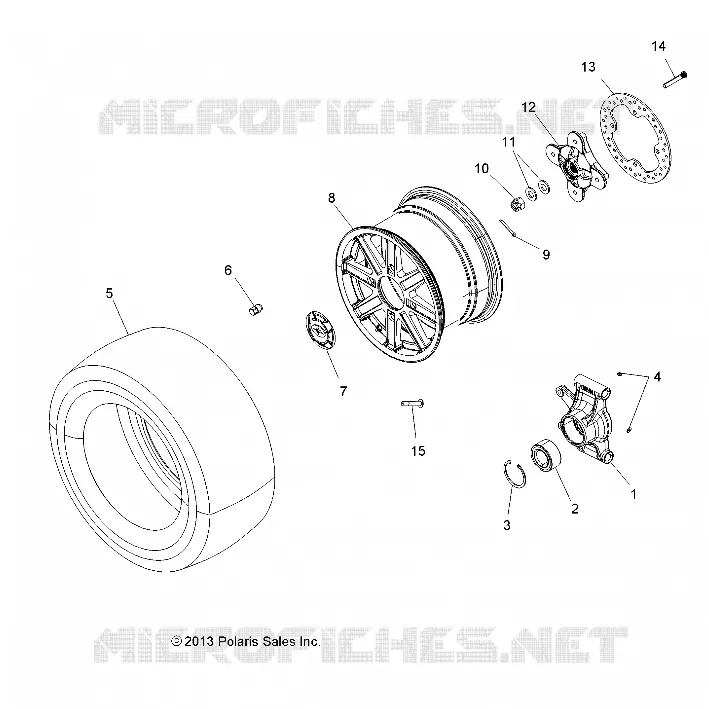

WHEELS, REAR AND HUB

1

CARRIER BEARING LH Â

5136689

$121,79 Unit Price incl. VAT

1

CARRIER BEARING RH Â

5136690

$121,79 Unit Price incl. VAT

2

BEARING-BALL SEALED 44X72X33.1

3514699

$73,49 Unit Price incl. VAT

3

RING-RETAINING 2.875 INTERNAL

7710440

$18,89 Unit Price incl. VAT

4

FITTING-LUBRICATION 1/4-28

7080424

$9,44 Unit Price incl. VAT

5

TIRE 26X10-14 CU063 E-MARK

5415736

Not Available

6

NUT-WHEEL M10X1.25 TAPERED

7547361

$4,19 Unit Price incl. VAT

6

NUT-WHEEL M10X1.25 TAPERED

7547363

$9,44 Unit Price incl. VAT

7

CAP HUB DUST

5413792

$62,99 Unit Price incl. VAT

7

COVER HUB FLASH BLACK

5450161655

$83,99 Unit Price incl. VAT

8

WELD-RIM REAR 14#X8 BLK

1521911067

$237,81 Unit Price incl. VAT

8

RIM-REAR CAST 14X7.5 FLASH BLK [INCL. COVER]

1521485655

$314,99 Unit Price incl. VAT

9

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

10

NUT-CASTLE M18X1.5X13

7547406

$9,44 Unit Price incl. VAT

11

WASHER-CONE.755X1.5X.072-.107P [RRP99C]

7555796

$14,69 Unit Price incl. VAT

12

HUB WHEEL

5136946

$178,49 Unit Price incl. VAT

13

DISC BRAKE

5250205

$141,74 Unit Price incl. VAT

14

STUD WHEEL Â

7518671

$3,14 Unit Price incl. VAT

15

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
