Parts Catalog
FRONT WHEEL ASSEMBLY
5
Parts Diagram
Parts Catalog
FRONT STRUT ASSEMBLY
by
CONTROLS

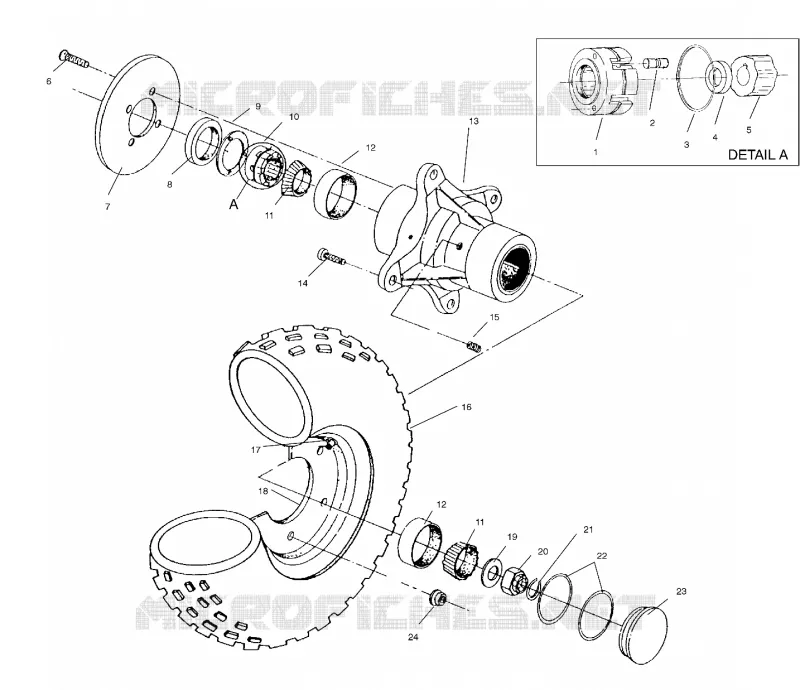

FRONT WHEEL ASSEMBLY
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
12
12
13
14
15
16
17
18
19
20
20
20
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
12
12
13
14
15
16
17
18
19
20
20
20
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
12
12
13
14
15
16
17
18
19
20
20
20
20
21
22
23
24
1
CAGE ROLL
3250028
$430,49 Unit Price incl. VAT
2
ROLLS
3250010
$68,24 Unit Price incl. VAT
3
SPRING GARTER
3250032
$30,44 Unit Price incl. VAT
4
SPACER Substituted by 1321814
3250031
$36,74 Unit Price incl. VAT
5
CAM (Splined Drive Shaft)
3250030
$325,49 Unit Price incl. VAT
6
BOLT(10)
7515321
Not Available
7
DISC BRAKE Substituted by 5242935 (If built before 5/03/99)
5211326
$167,99 Unit Price incl. VAT
8
SEAL FR. HUB
3610019
$68,24 Unit Price incl. VAT
9
PLATE ARMATURE
5211148
$52,49 Unit Price incl. VAT
10
CLUTCH ASM FR.HUB E/M HVY. Substituted by 1520281
1520214
$561,74 Unit Price incl. VAT
10
CLUTCH ASM F.HUB
1520209
Not Available
11
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
12
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
13
HUB ASM W/BRG.RACE (Incl. 8 13 15)
1520182
Not Available
14
STUD(10)
7515523
$5,76 Unit Price incl. VAT
15
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
16
TIRE FR(25X8-12)
5410568
5419027
$153,29 Unit Price incl. VAT
17
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
18
RIM FRT 6X12(SILVER) Substituted by 1520269-117
1520179117
1523448-067
$158,54 Unit Price incl. VAT
19
WASHER(10) *
7555903
Not Available
20
NUT RH THREAD
7543201
Not Available
20
NUT LH THREAD
7543204
Not Available
21
RING RETAINING
7710436
$9,44 Unit Price incl. VAT
22
O RING
5410470
$4,19 Unit Price incl. VAT
23
CAP HUB
5431368
$47,24 Unit Price incl. VAT
24
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
