FRONT STRUT ASSEMBLY FOR MAGNUM 4X4 - W958144 FROM 1995

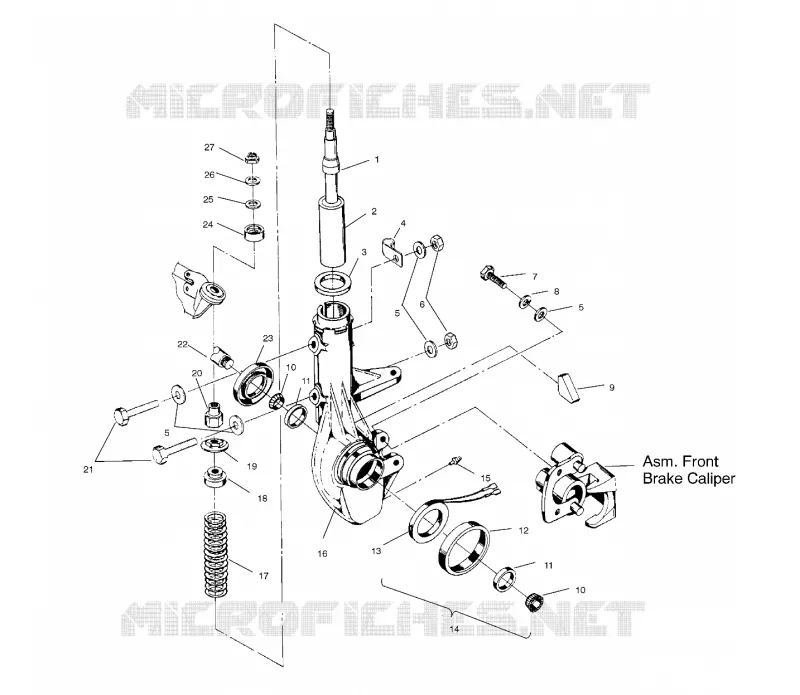

FRONT STRUT ASSEMBLY

1

BUMPER STRUT Substituted by 5411468

5410791

Not Available

2

STRUT FRONT 32MM. Substituted by 7041755

7041374

$283,49 Unit Price incl. VAT

3

WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]

5211115

$7,34 Unit Price incl. VAT

4

CLAMP RUBBER-COATED .562(10)

7080573

$13,64 Unit Price incl. VAT

5

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

6

NUT FLEX-LOC(10)

7542303

$11,54 Unit Price incl. VAT

7

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

8

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

9

RETAINER WIRE STRUT CAST

5810439

Not Available

10

BEARING TAPERED ROLLER

3554509

$40,94 Unit Price incl. VAT

11

BRG TAPER ROLL CUP

3554507

$54,59 Unit Price incl. VAT

12

SLEEVE STRUT HUB SEAL

5222193

$120,74 Unit Price incl. VAT

13

COIL MAGNETIC HVY. Substituted by 4170016

4170005

$241,49 Unit Price incl. VAT

14

HUBSTRUT ASM LH 32 MM. (Incl. 2 4-6 9-16 21 23)

1843054

Not Available

14

HUBSTRUT ASM RH 32 MM. (Incl. 2 4-6 9-16 21 23)

1843055

Not Available

15

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

16

KIT LH HUBSTRUT 32MM. Substituted by 1843054 (Incl. 9 13-15)

2200598

Not Available

16

KIT RH HUBSTRUT 32MM. Substituted by 1843055 (Incl. 9 13-15)

2200599

Not Available

17

Spring Compression

7041375067

$120,74 Unit Price incl. VAT

18

RETAINER SPRING TOP (Before 11/2/98)

5220602

Not Available

19

PIVOT BALL BOTTOM Substituted by 5432871

5430807

$19,94 Unit Price incl. VAT

20

SPACER THREADED (Before 11/2/98)

5130668

$52,49 Unit Price incl. VAT

21

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$9,44 Unit Price incl. VAT

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

23

SEAL HUB STRUT

3610028

$57,74 Unit Price incl. VAT

24

PIVOT BALL TOP Substituted by 5432872

5430806

$19,94 Unit Price incl. VAT

25

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

26

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

27

NUT FLEX LOC(10)

7542507

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
