REAR WHEEL DRIVE ASSEMBLY (AFTER SERIAL #2501800)
5
Parts Diagram
Parts Catalog
REAR WHEEL DRIVE ASSEMBLY
by
GEAR SELECTOR

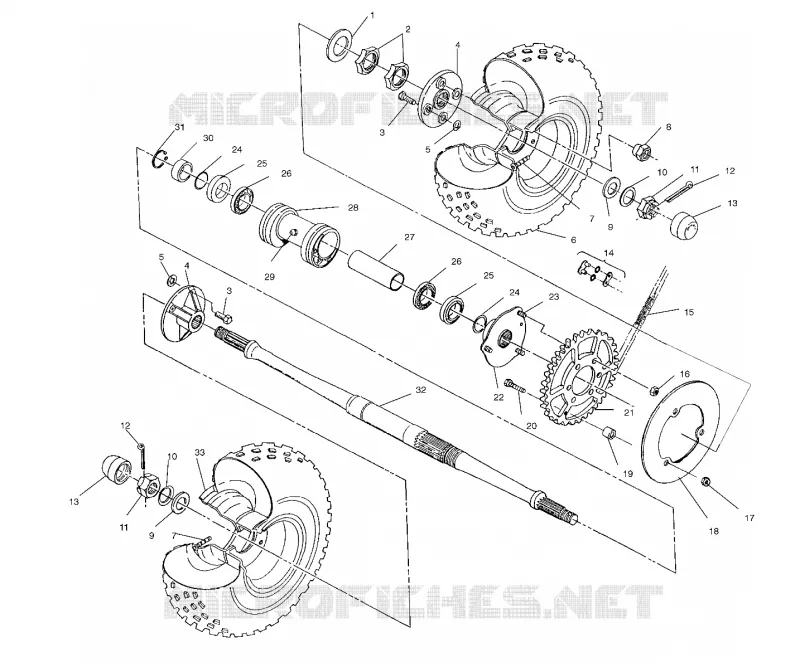

REAR WHEEL DRIVE ASSEMBLY (AFTER SERIAL #2501800)
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
33
1
WASHER(10)
7555764
Not Available
2
Nut Jam
5020468
$68,24 Unit Price incl. VAT
3
Screw
7512673
$5,76 Unit Price incl. VAT
4
KIT MACH.HUB
2200341
$173,24 Unit Price incl. VAT
5
Nut Push
7670081
$7,34 Unit Price incl. VAT
6
TIRE R(24X11-10)
5410479
Not Available
7
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
8
Nut
7542714
$3,14 Unit Price incl. VAT
9
Washer Flat
7555745
Not Available
10
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
11
NUT CASTLE(10)
7543005
Not Available
12
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
13
COVER DUST HUB Substituted by 5411164
5410404
5413427
$52,49 Unit Price incl. VAT
14
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
15
CHAIN DRIVE 86P Substituted by 3224056-086 (Includes Connector)
3224046
3221193-086
$272,99 Unit Price incl. VAT
16
Nut
7542403
Not Available
17
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
18
GUARD 38T SPKT BLK.ALUM.
5211585067
Not Available
19
SPACER
5020797
$4,29 Unit Price incl. VAT
19
SPACER-SPROCKET GUARD
5630586
Not Available
20
BOLT
7515540
$9,44 Unit Price incl. VAT
21
SPROCKET 38T
3222065
$178,49 Unit Price incl. VAT
21
SPROCKET 42T Substituted by 3222070
3223009
Not Available
22
SPROCKET HUB ASM.
1520170
Not Available
23
STUD(10)
7515513
$2,09 Unit Price incl. VAT
24
O RING 1 5/16(10)
5410415
Not Available
25
SEAL REAR AXLE
3610013
Not Available
26
BEARING BALL
3515501
$47,24 Unit Price incl. VAT
27
TUBE BEARING SPACER
5010204
Not Available
28
HOUSING AXLE
5130663
Not Available
29
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
30
SPACER BEARING
5010206
$68,24 Unit Price incl. VAT
31
Ring Retaining
7710405
$9,44 Unit Price incl. VAT
32
AXLE REAR
5020789
Not Available
33
RIM-REAR 8.5/10 SILVER
1520183117
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
