Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog
ENGINE, MOUNTING
5

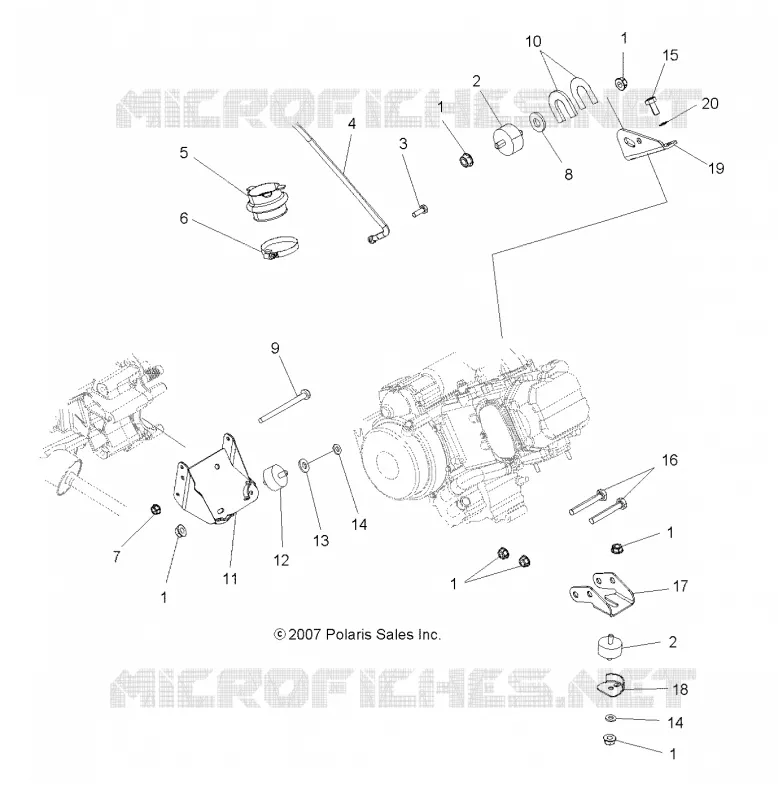

Parts Diagram
Parts Catalog
ENGINE, FUEL INJECTOR
by
SHORT BLOCK
ENGINE, MOUNTING
1
1
1
1
1
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
1
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
2
ISOLATOR
3022071
3024012
$83,99 Unit Price incl. VAT
3
Bolt Flange
3084874
Not Available
4
CABLE-BLK(FRAME/ENGINE)
4011546
$27,29 Unit Price incl. VAT
5
Boot Clutch Intake (If built after 8/04/03)
5412487
Not Available
6
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
9
SCR-5/16-18X7.5 HXCP GR Y
7518648
$13,64 Unit Price incl. VAT
10
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
10
SHIM CHAINCASE .080
5210760
$6,29 Unit Price incl. VAT
11
Mount Engine Rear Black
1015648067
Not Available
12
ISOLATOR
3022076
Not Available
13
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
14
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
15
Bolt
7512315
$9,44 Unit Price incl. VAT
16
Screw
7518415
$9,44 Unit Price incl. VAT
17
Mount Engine Front
5250326
$68,24 Unit Price incl. VAT
18
Bracket Torque Stop
5245043
$31,49 Unit Price incl. VAT
19
Mount Engine Top
5241453
Not Available
20
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
