1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog
REAR BODYWORK STORAGE BOX
5
Parts Diagram
Parts Catalog
REAR RACK ASM.
by
BRAKE LINES

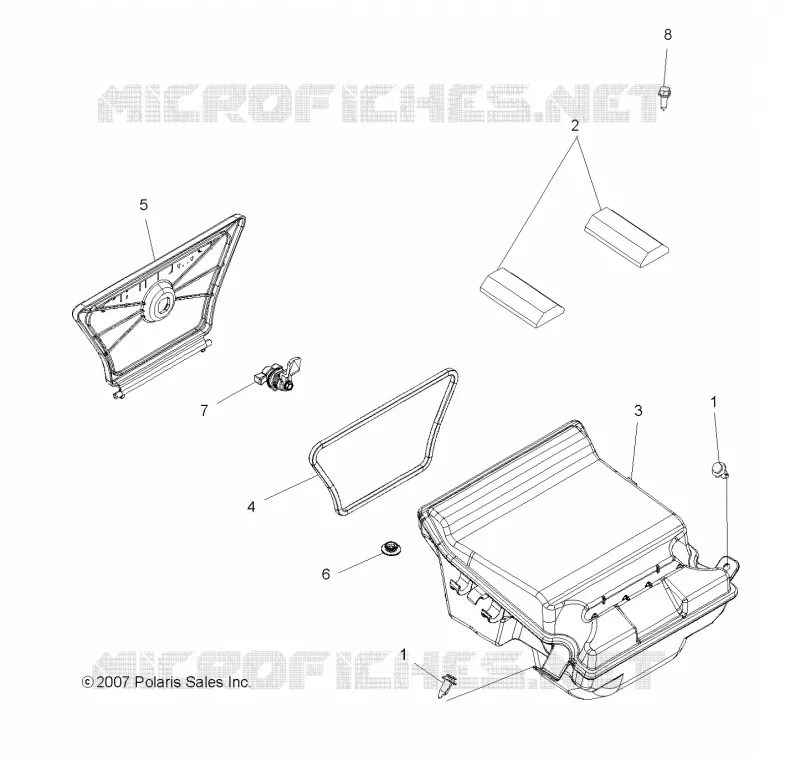

REAR BODYWORK STORAGE BOX
1
1
2
3
4
5
6
7
8
1
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
2
Pad Toolbox Rear
5813293
$16,79 Unit Price incl. VAT
3
Asm. Box Rear
1203654
Not Available
4
SEAL [TO 8/12/2021]
5812911
5815299
$52,49 Unit Price incl. VAT
5
Cover Tool Box
5436349
$73,49 Unit Price incl. VAT
6
PLUG-COMPARTMENT
5412981
5418084
$6,29 Unit Price incl. VAT
7
LATCH-1/4 TURN CAM
7081425
$11,54 Unit Price incl. VAT
8
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
