1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog
FLYWHEEL COVER
5

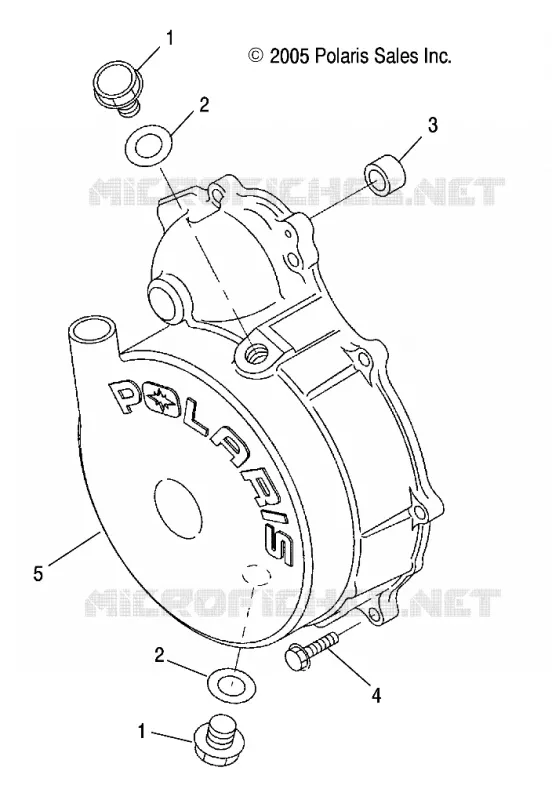

Parts Diagram
Parts Catalog
ENGINE, OIL SYSTEM
by
WATER PUMP
FLYWHEEL COVER
1
1
2
2
3
4
5
1
PLUG
3086749
Not Available
2
GASKET
3082956
$9,44 Unit Price incl. VAT
3
BUSHING STARTER
3083669
Not Available
4
BOLT FLANGE(10)
3084877
Not Available
5
Cover Flywheel [Incl. 3]
3087200
$293,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
