Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ
4
Parts Catalog

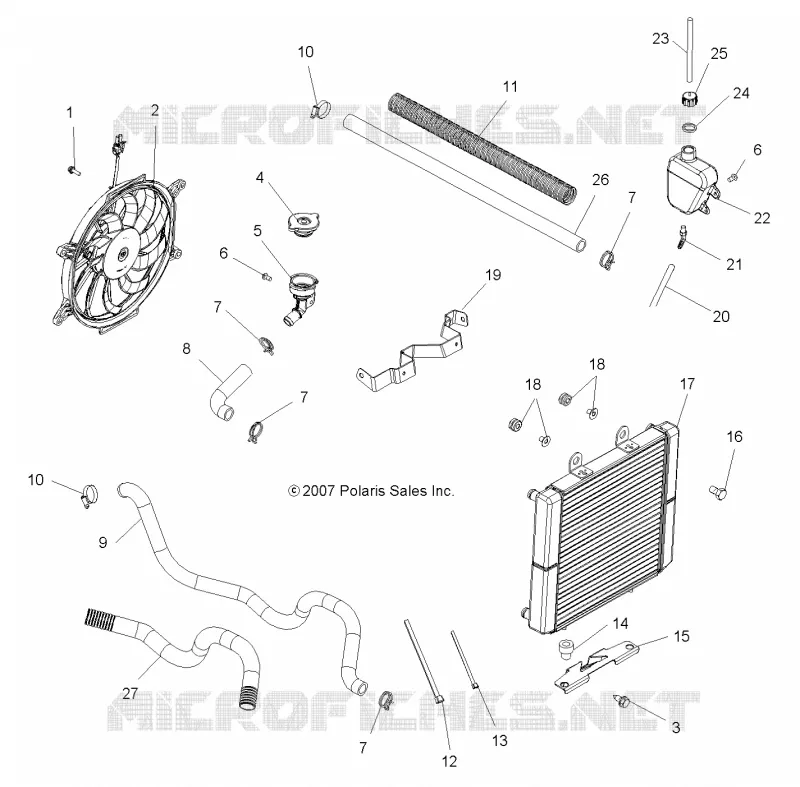

COOLING SYSTEM (BUILT 4/07/09 AND AFTER)
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
DRIVE TRAIN, REAR DRIVE SHAFT
COOLING SYSTEM (BUILT 4/07/09 AND AFTER)
1
2
3
4
5
6
6
7
7
7
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
11
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
1
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
2
Asm. Fan and Motor
2410383
$303,96 Unit Price incl. VAT
3
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
4
CAP PRESSURE
1240508
$89,24 Unit Price incl. VAT
5
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
8
Hose Filler Neck [Built 2/03/09 and After]
5413677
Not Available
9
Hose Engine Lower [Built 2/03/09 and After]
5413679
Not Available
10
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
11
Conduit Flex [Built 2/03/09 and After]
552179351
$19,94 Unit Price incl. VAT
12
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
13
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
14
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
15
Bracket Radiator Lower
5247047067
$115,49 Unit Price incl. VAT
16
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
17
ASM. RADIATOR
1240520
1241477
$834,74 Unit Price incl. VAT
18
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
19
Bracket Radiator Upper
5250769
Not Available
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
22
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
23
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
24
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
25
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
26
Hose [Built 2/03/09 and After]
5413678
Not Available
27
Conduit Flex [Built 2/03/09 and After]
552179351
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
