1
Engine displacement
900
2
Year
2017
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog

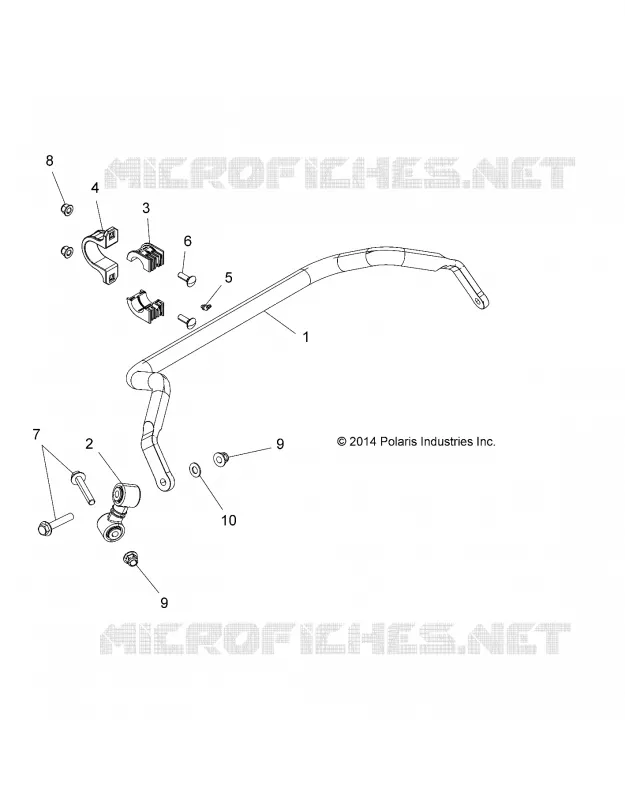

STABILIZER BAR, REAR
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION CARRIER
by
WHEELS, REAR
STABILIZER BAR, REAR
1
2
3
4
5
6
7
8
9
9
10
1
BAR STABILIZER
5337080
$330,74 Unit Price incl. VAT
2
ASM. LINKAGE STABILIZER BAR
1543406
$178,49 Unit Price incl. VAT
3
BUSHING REAR BAR 27MM
5451568
$7,34 Unit Price incl. VAT
4
BRKT-CAP SWAY BAR 1.25#
5633408
$73,49 Unit Price incl. VAT
5
Fitting Lubricating 45 Degree
7080438
$19,94 Unit Price incl. VAT
6
SCR-RHCAR-M10X1.25X50 8.8 ZOD
7519073
$13,64 Unit Price incl. VAT
7
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$10,49 Unit Price incl. VAT
8
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
9
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
10
WASHER
7556153
$3,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
