1
Engine displacement
900
2
Year
2017
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog
OIL DIPSTICK AND BREATHER
5
Parts Diagram
Parts Catalog
COOLING, WATERPUMP
by
STARTER & DRIVE

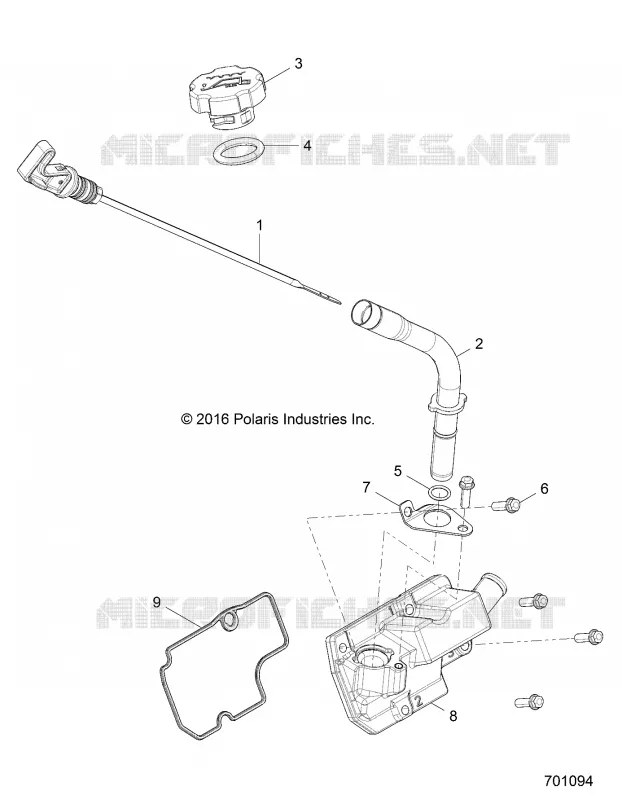

OIL DIPSTICK AND BREATHER
1
2
3
4
5
6
7
8
9
1
ASM. DIPSTICK ENGINE OIL
3022897
3023488
$68,24 Unit Price incl. VAT
2
ASM-OIL FILL TUBE [INCLUDES O-RING]
1204547
$83,99 Unit Price incl. VAT
3
ASM-OIL FILL CAP (INCL. 2)
1205012
$68,24 Unit Price incl. VAT
4
O-RING-FILL CAP
5414362
$6,81 Unit Price incl. VAT
5
O-RING 12MMX2MM
5414047
$6,81 Unit Price incl. VAT
6
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
7
BRACKET TUBE OIL FILL LOWER
5255453
$16,79 Unit Price incl. VAT
8
COVER-BREATHER MACH
5137878
5145419
$73,49 Unit Price incl. VAT
9
SEAL COVER BREATHER
5813759
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
