1
Engine displacement
900
2
Year
2017
3
Trim
RZR 900 60 INCH ALL OPTIONS
4
Parts Catalog
WIRE HARNESS
5

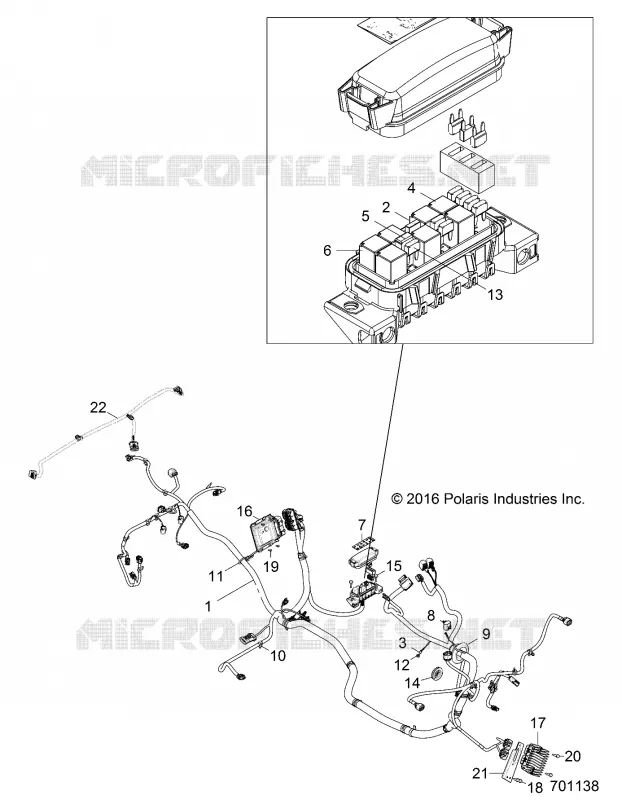

Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, AIR INTAKE SYSTEM
WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
HARNESS-CHASSIS RZR 900 EPS [INCL. 2-13]
2413491
$1 937,24 Unit Price incl. VAT
2
FUSE-MINI BLADE 15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
3
LED - PANEL MNT 12V BLUE (R MODELS)
2413217
$99,74 Unit Price incl. VAT
4
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
BRAEAKER CIRCUIT 25 AMP
4015771
$125,99 Unit Price incl. VAT
6
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
7
LABEL-FUSE BOX
7184204
Not Available
8
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
9
GROMMET - 65 MM BLK
5813954
$13,64 Unit Price incl. VAT
10
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
11
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
12
CLIP - ROUTING DIN BOX (R MODELS)
7082020
$10,49 Unit Price incl. VAT
13
FUSE-25A MINI BLADE
4011653
$16,79 Unit Price incl. VAT
14
GROMMET ELECTRICAL CAB
5414440
$13,64 Unit Price incl. VAT
15
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
16
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
17
REGULATOR 3 PHASE 50 AMP SERIES
4014856
4016868
$246,74 Unit Price incl. VAT
18
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
19
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
20
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
21
BRKT-MOUNT REGULATOR BLK
5262740329
$62,99 Unit Price incl. VAT
22
HARNESS BOX RZR [NR]
2412287
$104,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
