Engine displacement
570
2
Year
2016
3
Trim
RZR 570 EU
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
by
DRIVE TRAIN, REAR HALF SHAFT

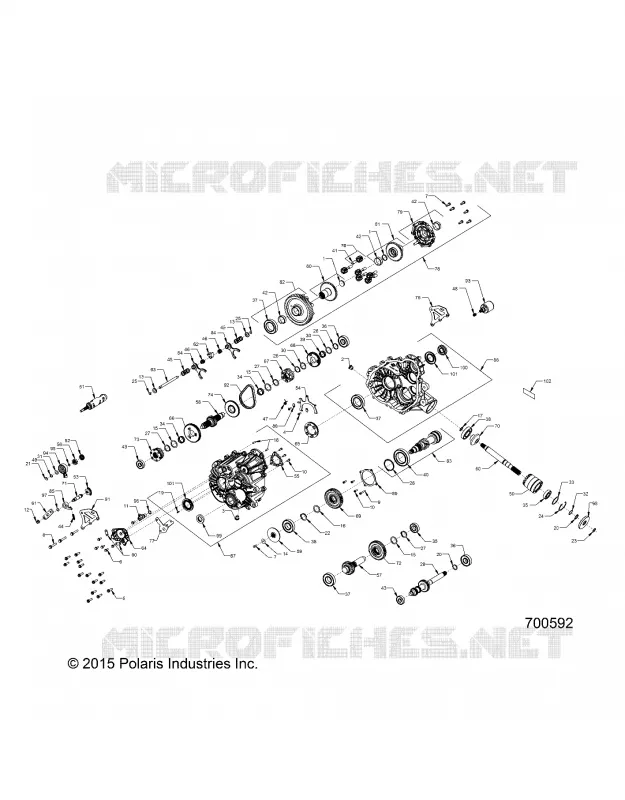

DRIVE TRAIN, MAIN GEARCASE
-
1
1
2
3
4
5
6
7
7
8
9
10
10
11
12
13
13
14
15
15
15
16
17
18
19
20
20
21
22
23
24
25
25
26
26
27
27
27
28
29
30
30
31
32
33
34
34
35
35
36
36
37
37
37
38
38
39
40
41
42
42
42
43
43
44
45
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
101
102
-
ASM-GEARCASE COMPLETE DIFF BLW [Incl. All]
1333509
$3 369,44 Unit Price incl. VAT
1
PLUG M18 X 1.5 MAGNETIC
3234249
$25,19 Unit Price incl. VAT
2
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
3
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
4
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
6
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
7
SCREW CAP HH M8 X 1.25 X 25
3235096
3236169
$17,84 Unit Price incl. VAT
8
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
9
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
10
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
11
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
12
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
13
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
14
WASHER BELLEVILLE 42140 X 1.25 X 0.09
3234952
$13,64 Unit Price incl. VAT
15
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
16
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
17
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
18
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
19
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
20
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
21
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
22
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
23
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
24
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
25
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
26
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
27
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
28
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
29
SHAFT BOSS LW UTILITY INPUT AVALANCHE
3235429
$330,74 Unit Price incl. VAT
30
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
31
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
32
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
33
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
34
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
35
BEARING
3233019
$54,59 Unit Price incl. VAT
36
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
37
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
38
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
39
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
40
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
41
BEARING PLAIN 10 X 12 X 25
3234239
$27,29 Unit Price incl. VAT
42
BEARING PLAIN 40 X 44 X 15
3234241
$27,29 Unit Price incl. VAT
43
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
44
SPRING COMPRESSION 0.36 O.D. X 1.125
3233830
$19,94 Unit Price incl. VAT
45
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
46
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
47
SPRING TORSION RETURN
3234276
$16,79 Unit Price incl. VAT
48
SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE
3234277
$26,24 Unit Price incl. VAT
49
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
50
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
51
DRUM-SHIFT MACH.(255289)
3235463
$519,74 Unit Price incl. VAT
52
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
53
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
54
FORK PIVOT SHIFT REAR DIFF
3235455
$173,24 Unit Price incl. VAT
55
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
56
DETENT STAR
3235603
$73,49 Unit Price incl. VAT
57
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
58
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
59
DISC BRAKE
3235372
$120,74 Unit Price incl. VAT
60
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
61
BELLCRANK TITAN
3235397
3235386
$62,99 Unit Price incl. VAT
62
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
63
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
64
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
65
DOG ENGAGEMENT 6-FACE
3234928
$136,49 Unit Price incl. VAT
66
GEAR-LOW 67T(352856)
3235232
$230,99 Unit Price incl. VAT
67
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
68
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
69
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
70
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
71
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
72
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
73
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
74
SPROCKET-48T 6-FACE REVERSE
3235755
$152,24 Unit Price incl. VAT
75
WELDMENT REAR MOUNT BRACKET
3235239
$73,49 Unit Price incl. VAT
76
GEAR SUBASSEMBLY
3234469
$136,49 Unit Price incl. VAT
77
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
78
SUBASSEMBLY AVALANCHE DIFFERENTIAL
3235373
$771,74 Unit Price incl. VAT
79
SUBASSEMBLY DIFF COVER [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]
3235376
$262,49 Unit Price incl. VAT
80
SUBASSEMBLY 39T SIDE GEAR [INCL. PLUG] [INCL. PLUG]
3235374
$351,74 Unit Price incl. VAT
81
SUBASSY 39T SIDE GEAR [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]
3235375
$351,74 Unit Price incl. VAT
82
SUBASSY GEAR 53T [INCL. PINS BUSHING BEARING] [INCL. PINS BUSHING BEARING]
3235378
$750,74 Unit Price incl. VAT
83
SUBASM. PINION 11T
3235371
$782,24 Unit Price incl. VAT
84
SUBASSEMBLY SHIFT FORK [INCLUDES ALL HARDWARE]
3235454
$167,99 Unit Price incl. VAT
85
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
86
SUBASSEMBLY LH CASE [INCL. HARDWARE] [INCL. ALL HARDWARE]
3235831
$818,99 Unit Price incl. VAT
87
SUBASM. RH COVER [INCL. ALL HARDWARE]
3235832
$713,99 Unit Price incl. VAT
88
RETAINER-FORK
3234934
$19,94 Unit Price incl. VAT
89
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
90
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
91
BRACKET REAR MOUNT
5257351
Not Available
92
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
93
SOLENOID
3235478
$545,99 Unit Price incl. VAT
94
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
95
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
96
O-RING
3234302
$13,64 Unit Price incl. VAT
97
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
98
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
99
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
100
SEAL TRIPLE LIP VITON HELIX 30 X 47
3234851
$68,24 Unit Price incl. VAT
101
SEAL-SHAFT OUTPUT
3235830
$104,99 Unit Price incl. VAT
102
SPEED NUT-WASHER HEAD-1/4
******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR 570 EU

PASSENGER GRAB BAR

PASSENGER GRAB BAR

for RZR 570 EU from 2016

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for RZR 570 EU from 2016

REAR BUMPER

REAR BUMPER

for RZR 570 EU from 2016

REAR RACK and FENDERS

REAR RACK and FENDERS

for RZR 570 EU from 2016

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RZR 570 EU from 2016

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR 570 EU from 2016

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RZR 570 EU from 2016

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR 570 EU from 2016

DECALS

DECALS

for RZR 570 EU from 2016

FRONT BUMPER

FRONT BUMPER

for RZR 570 EU from 2016

SEAT MOUNTING AND BELTS

SEAT MOUNTING AND BELTS

for RZR 570 EU from 2016

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for RZR 570 EU from 2016

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for RZR 570 EU from 2016

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RZR 570 EU from 2016

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for RZR 570 EU from 2016

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for RZR 570 EU from 2016

SENSORS

SENSORS

for RZR 570 EU from 2016

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR 570 EU from 2016

CYLINDER HEAD, CAMS AND VALVES

CYLINDER HEAD, CAMS AND VALVES

for RZR 570 EU from 2016

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR 570 EU from 2016

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for RZR 570 EU from 2016

THROTTLE BODY AND FUEL RAIL

THROTTLE BODY AND FUEL RAIL

for RZR 570 EU from 2016

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR 570 EU from 2016

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for RZR 570 EU from 2016

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for RZR 570 EU from 2016

COOLING SYSTEM

COOLING SYSTEM

for RZR 570 EU from 2016

CRANKCASE

CRANKCASE

for RZR 570 EU from 2016

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for RZR 570 EU from 2016

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for RZR 570 EU from 2016

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for RZR 570 EU from 2016

REFERENCES, TOOL KIT AND OWNERS MANUAL

REFERENCES, TOOL KIT AND OWNERS MANUAL

for RZR 570 EU from 2016

STEERING

STEERING

for RZR 570 EU from 2016

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR 570 EU from 2016

FLOOR AND ROCKER PANELS

FLOOR AND ROCKER PANELS

for RZR 570 EU from 2016

FUEL TANK

FUEL TANK

for RZR 570 EU from 2016

SEAT ASM.

SEAT ASM.

for RZR 570 EU from 2016

SIDE NETS

SIDE NETS

for RZR 570 EU from 2016

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for RZR 570 EU from 2016

CHASSIS, CAB FRAME AND SIDE BARS

CHASSIS, CAB FRAME AND SIDE BARS

for RZR 570 EU from 2016

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR 570 EU from 2016

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR 570 EU from 2016

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR 570 EU from 2016

WIRE HARNESS

WIRE HARNESS

for RZR 570 EU from 2016

ENGINE, BREATHER

ENGINE, BREATHER

for RZR 570 EU from 2016

CYLINDER

CYLINDER

for RZR 570 EU from 2016

ENGINE, ENGINE AND TRANSMISSION MOUNTING

ENGINE, ENGINE AND TRANSMISSION MOUNTING

for RZR 570 EU from 2016

THERMOSTAT and COVER

THERMOSTAT and COVER

for RZR 570 EU from 2016

THROTTLE PEDAL

THROTTLE PEDAL

for RZR 570 EU from 2016

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR 570 EU from 2016

FRONT STABILIZER BAR

FRONT STABILIZER BAR

for RZR 570 EU from 2016

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR 570 EU from 2016

PARKING BRAKE BRAKE

PARKING BRAKE BRAKE

for RZR 570 EU from 2016

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR 570 EU from 2016

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RZR 570 EU from 2016

BATTERY

BATTERY

for RZR 570 EU from 2016

ELECTRICAL, INSTRUMENTS CONTROLS

ELECTRICAL, INSTRUMENTS CONTROLS

for RZR 570 EU from 2016

HEADLIGHTS, TAILLIGHTS AND BULBS

HEADLIGHTS, TAILLIGHTS AND BULBS

for RZR 570 EU from 2016

IGNITION

IGNITION

for RZR 570 EU from 2016

LICENSE PLATE LAMP LIGHT, TURN SIGNAL AND HORN

LICENSE PLATE LAMP LIGHT, TURN SIGNAL AND HORN

for RZR 570 EU from 2016

LONG BLOCK

LONG BLOCK

for RZR 570 EU from 2016

OIL FILTER AND DIPSTICK

OIL FILTER AND DIPSTICK

for RZR 570 EU from 2016

OIL PUMP

OIL PUMP

for RZR 570 EU from 2016

STARTER DRIVE

STARTER DRIVE

for RZR 570 EU from 2016

REAR STABILIZER BAR

REAR STABILIZER BAR

for RZR 570 EU from 2016

WHEELS, FRONT

WHEELS, FRONT

for RZR 570 EU from 2016

WHEELS, REAR

WHEELS, REAR

for RZR 570 EU from 2016

POLARIS RZR 570 EU 2016

RZR 570 EU

RZR 570 EU

Model : RZR 570 EU

Engine capacity : 570

Year : 2016

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
