1
Engine displacement
570
2
Year
2016
3
Trim
RZR 570 EU
4
Parts Catalog

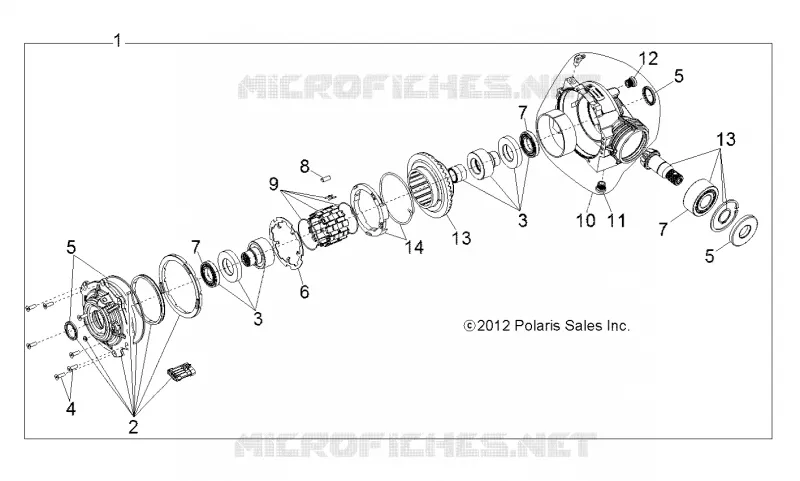

DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
REAR RACK and FENDERS
by
DRIVE TRAIN, FRONT HALF SHAFT
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
3
3
4
5
5
5
6
7
7
7
8
9
10
11
12
13
13
14
1
ASM. FRONT GEARCASE
1333285
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT W/O-RING DOWEL PIN OIL SEAL COVER CONNECTOR ASSY BACKLASH SPACER 4WD COIL GROMMET & HEAT SHRINK TUBING
3235168
3236681
$955,49 Unit Price incl. VAT
3
ASSY OUTPUT HUB - MALE AND FEMALE
3235169
3236683
$782,24 Unit Price incl. VAT
4
COVER FASTENERS W/ALL FASTENERS
3235170
$34,64 Unit Price incl. VAT
5
COMPLETE SEAL REPAIR
3235171
3236682
$167,99 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
BEARING-PINION 5306 W/ALL BEARINGS
3235174
$135,44 Unit Price incl. VAT
8
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
9
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
10
KIT GEARCASE ASSY W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG[TO 1/17/2019]
3235440
$1 175,99 Unit Price incl. VAT
11
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
12
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
13
KIT GEAR HOUSING & PINION GEAR [INCL. PINION PIN BEARING SNAP RING RING GEAR]
3235636
3239382
$1 280,99 Unit Price incl. VAT
14
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
