1
Engine displacement
570
2
Year
2016
3
Trim
RZR 570 EU
4
Parts Catalog

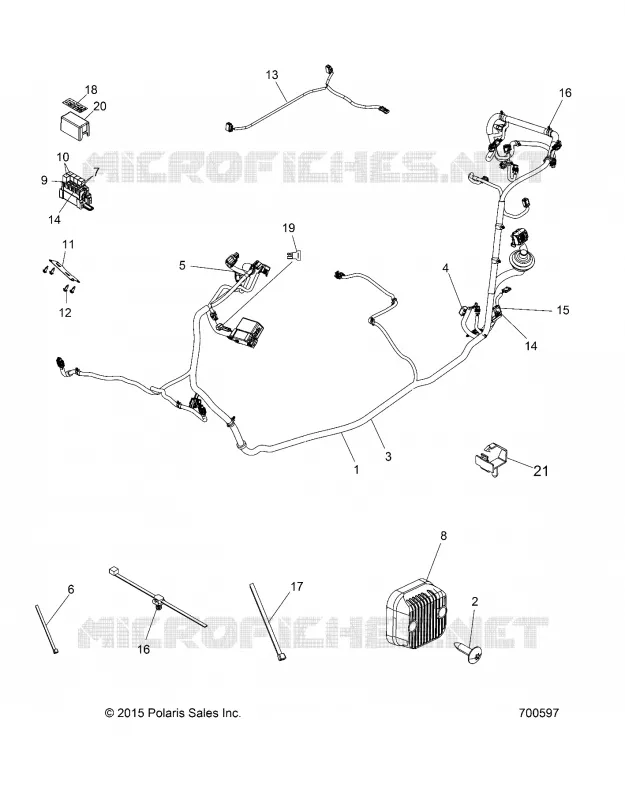

WIRE HARNESS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ENGINE, BREATHER
WIRE HARNESS
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
HARNESS CHASSIS 570 RZR INTL [INCL. 3-5 7 9 10 14 15 18-20 ALL KITS]
2412415
$1 216,94 Unit Price incl. VAT
1
KIT HARNESS TPS
2878498
$220,49 Unit Price incl. VAT
1
KIT HARNESS IAC
2878507
$272,99 Unit Price incl. VAT
1
Kit Harness Regulator AC In
2878505
$161,69 Unit Price incl. VAT
1
KIT HARNESS PHASE SENSOR
2878504
$257,24 Unit Price incl. VAT
1
Kit Harness Regulator DC Out
2878506
$524,99 Unit Price incl. VAT
1
KIT HARNESS CPS
2878497
$220,49 Unit Price incl. VAT
1
KIT HARNESS T-BAP
2875542
2878494
$220,49 Unit Price incl. VAT
1
KIT STATOR
2878508
Not Available
1
KIT HARNESS HEADLIGHT
2878493
$82,94 Unit Price incl. VAT
1
KIT HARNESS ENGINE TEMP
2878496
$120,74 Unit Price incl. VAT
1
KIT HARNESS IGNITION COIL
2878501
Not Available
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
KIT FUSIBLE LINK 1.0 MM
2202670
$68,24 Unit Price incl. VAT
4
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
5
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
6
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
7
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
8
REGULATOR-3PH 35A SERIES 105C
4012941
$451,49 Unit Price incl. VAT
9
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
10
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
11
Plate Fuse Mount
5253675
$15,74 Unit Price incl. VAT
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
Harness Box
2411730
$230,99 Unit Price incl. VAT
14
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
15
DECAL POWER FUSE
7177211
Not Available
16
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
17
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
18
DECAL RELAY/FUSE BLOCK
7177181
Not Available
19
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
20
COVER-RELAY/FUSE CENTER
5438758
$23,09 Unit Price incl. VAT
21
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
