1
Engine displacement
500
2
Year
1992
3
Trim
500 SPX - 0920674N
4
Parts Catalog

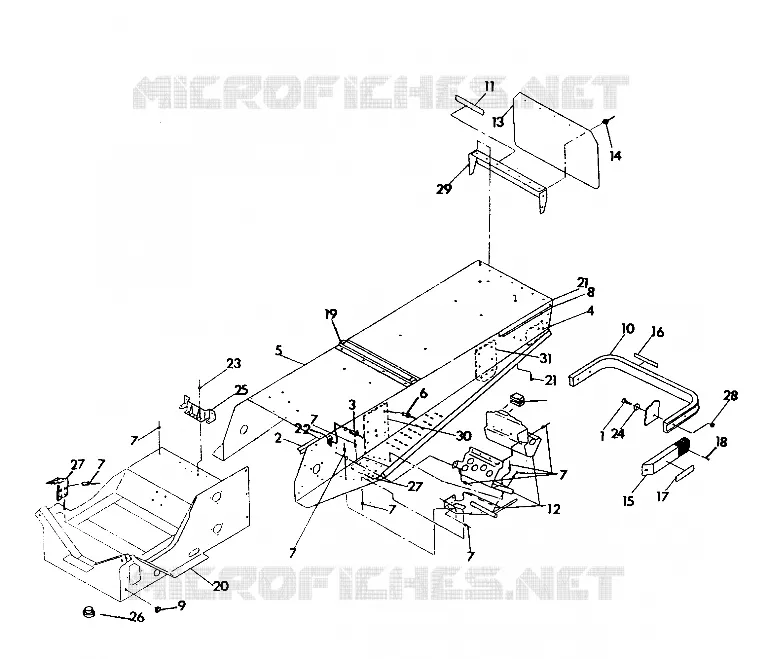

TUNNEL ASSEMBLY 500 SPX (4922552255001A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 SPX (4922552255042A)
by
SEAT/GAS TANK ASSEMBLY 500 SPX (4922552255003A)
TUNNEL ASSEMBLY 500 SPX (4922552255001A)
1
2
3
4
5
6
7
7
7
7
7
7
7
8
8
8
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
28
29
30
31
31
31
31
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
1
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
2
BRACE TUNNEL REINF.
5222412
Not Available
3
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
4
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
5
TUNNEL ASM STRT.LIQ.BLK.
1011920
Not Available
6
RIVET (50)
7661825
$1,04 Unit Price incl. VAT
7
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
8
DECAL LH TUNNEL STRIPE [No Longer Available] (SP)
7073344
Not Available
8
DECAL RH TUNNEL STRIPE [No Longer Available] (SP)
7073345
Not Available
9
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
10
BUMPER REAR Substituted by 5224334-067
5224334
Not Available
11
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
12
FOOTREST ASM RH
1011862
Not Available
12
FOOTREST ASM LH
1011861
Not Available
13
SNOWFLAP SILVER Substituted by 5410394
5410689092
5410394-1038
$194,24 Unit Price incl. VAT
14
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
15
CAP BUMPER Substituted by 5430930-070 (TRAIL)
5430930
Not Available
16
DECAL R.BUMPER#500S/P# [No Longer Available] (SP)
7073342
Not Available
17
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
18
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
19
BRKT R.FUEL TANK BLK.
5222375067
$27,92 Unit Price incl. VAT
20
BULKHEAD (500 SPX) Substituted by 1011851-067
1011851
Not Available
21
BOLT
7512103
$6,29 Unit Price incl. VAT
22
SNAP-MALE(10)
7080227
Not Available
23
RIVET(50)
7621301
Not Available
24
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
25
BRACKET GAS TANK BLACK
1011733067
Not Available
26
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
27
SUPPORT MUFFLER BLK. Substituted by 5242798-067
1011831067
Not Available
28
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
29
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
30
BRACKET SUSPENSION FRONT BLACK
5211323067
$47,24 Unit Price incl. VAT
31
BRKT RH R.SUSP.
1011858067
Not Available
31
BRKT LH R.SUSP
1011857067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
