1
Engine displacement
500
2
Year
1992
3
Trim
500 SPX - 0920674N
4
Parts Catalog

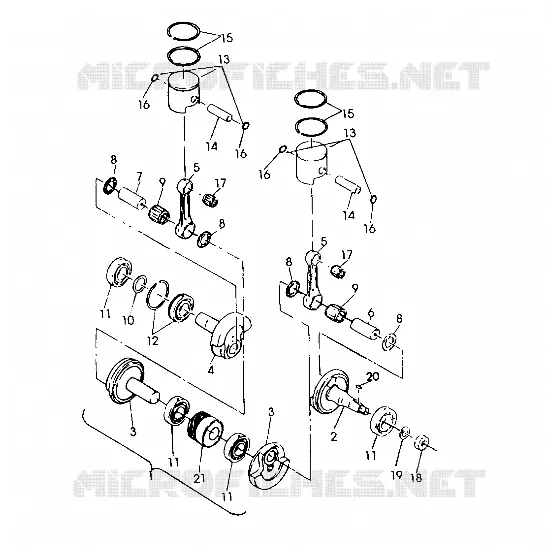

PISTON CRANKSHAFT 500 SPX (4922552255037A)
5
Parts Diagram
Parts Catalog
CYLINDER 500 SPX (4922552255036A)
by
WATER PUMP 500 SPX (4922552255038A)
PISTON CRANKSHAFT 500 SPX (4922552255037A)
1
2
3
3
4
5
5
6
7
8
8
8
8
9
9
10
11
11
11
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
16
16
16
17
17
18
19
20
21
1
CRANKSHAFT ASM. Substituted by 3084612 (Incl. 2-11 21)
3084360
Not Available
2
CRANKSHAFT #1
3083362
Not Available
3
CRANKSHAFT 2 (Incl. 6)
3083713
$806,39 Unit Price incl. VAT
4
CRANKSHAFT Substituted by 3085179
3084357
Not Available
5
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
6
PIN CRANK
3083233
Not Available
7
CRANK PIN 2
3083456
5141629
$57,74 Unit Price incl. VAT
8
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
9
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
10
SPACER CRANKSHAFT
3080447
$3,24 Unit Price incl. VAT
11
BEARING BALL Substituted by 3084586
3083480
3515063
$60,89 Unit Price incl. VAT
12
BALL BEARING C-4
3083714
Not Available
13
PISTON (.020 O/S) (.020 Oversize) (Incl
3084341
Not Available
13
PISTON STD. (Standard) (Incl.16)
3084339
Not Available
13
PISTON (.010 O/S) (.010 Oversize) (Incl
3084340
Not Available
14
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
15
RING PISTON (.020 O/S) (.020 Oversize)
3084344
Not Available
15
RING PISTON STD. (Standard)
3084342
$68,24 Unit Price incl. VAT
15
RING PISTON (.010 O/S) (.010 Oversize)
3084343
Not Available
16
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
17
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
20
KEY
3081447
Not Available
21
GEAR DRIVE OIL PUMP
3083782
$150,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
