1
Engine displacement
500
2
Year
1992
3
Trim
500 SPX - 0920674N
4
Parts Catalog
MAGNETO 500 SPX (4922552255041A)
5
Parts Diagram
Parts Catalog
OIL PUMP 500 SPX (4922552255040A)
by
RECOIL STARTER 500 SPX (4922552255042A)

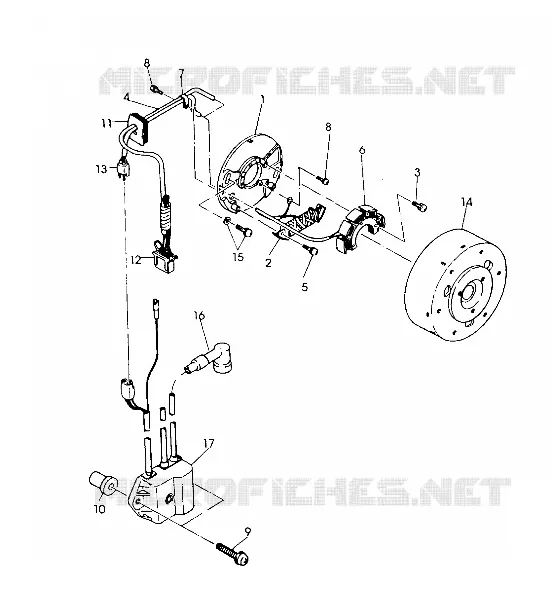

MAGNETO 500 SPX (4922552255041A)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
1
PLATE ASM. (Incl. 2-13)
3084361
Not Available
2
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
3
SCREW(10)
3082365
$6,29 Unit Price incl. VAT
4
HARNESS WIRE
3084362
Not Available
5
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
6
STATOR
3084349
Not Available
7
CLAMP
3081296
Not Available
8
SCREW&WASHER (10)
3081260
Not Available
9
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
10
NUT-RUBBER
3083240
Not Available
11
GROMMET
3082969
Not Available
12
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
13
COUPLER
3083909
$41,99 Unit Price incl. VAT
14
FLYWHEEL
3084358
Not Available
15
SCREW&WASHER (10)
3082175
Not Available
16
CAP SPARK PLUG Substituted by 4020129
3083155
$52,49 Unit Price incl. VAT
17
COIL IGNITION
3084288
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
