Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
CYLINDER AND HEAD
5

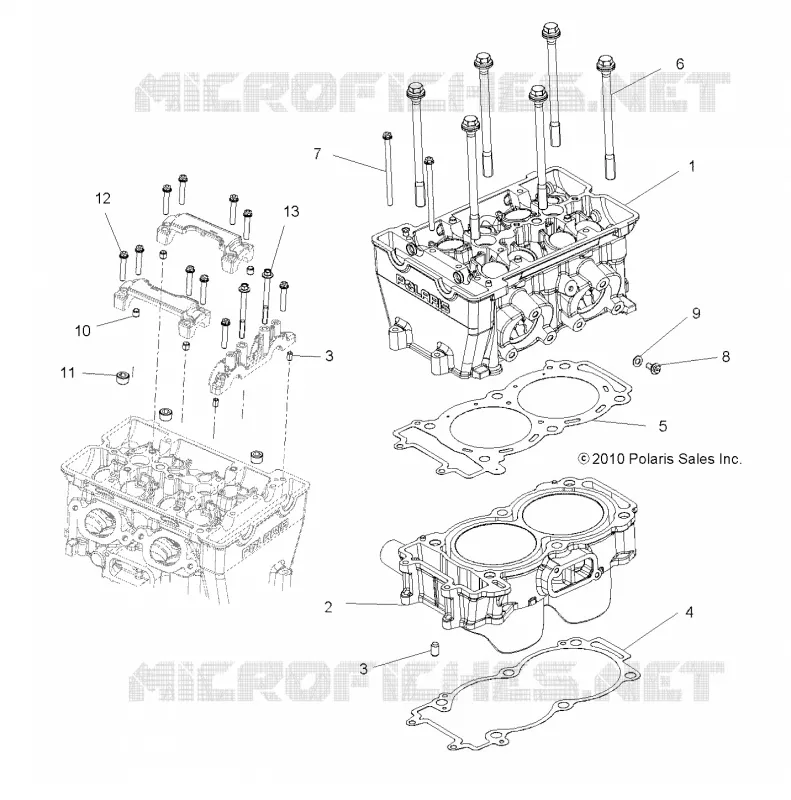

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
ENGINE, STATOR AND COVER
CYLINDER AND HEAD
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
1
ASM. CYLINDER HEAD [INCL. HEAD SEATS GUIDES CARRIERS 10-13 QTY. 2 OF 3]
1204660
$1 219,04 Unit Price incl. VAT
2
Asm. Cylinder [Incl. Cylinder Dowel Pins]
3022278
$828,44 Unit Price incl. VAT
3
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
4
GASKET BASE 2 CYL
5253037
$57,74 Unit Price incl. VAT
5
Gasket Cylinder Head
5813439
$94,49 Unit Price incl. VAT
6
SCR-HXFL-M11X1.25X150 10.9 SEM
7519123
7520978
$41,99 Unit Price incl. VAT
7
SCR-HXFLG M6X1.0X90
7519153
$10,49 Unit Price incl. VAT
8
SCREW
7517679
$25,19 Unit Price incl. VAT
9
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
10
DOWEL HOLLOW M8X8
7661977
$15,74 Unit Price incl. VAT
11
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
12
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X70 B18.2.3.4M [USED WITH 3022716]
7519197
$1,56 Unit Price incl. VAT
