1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog

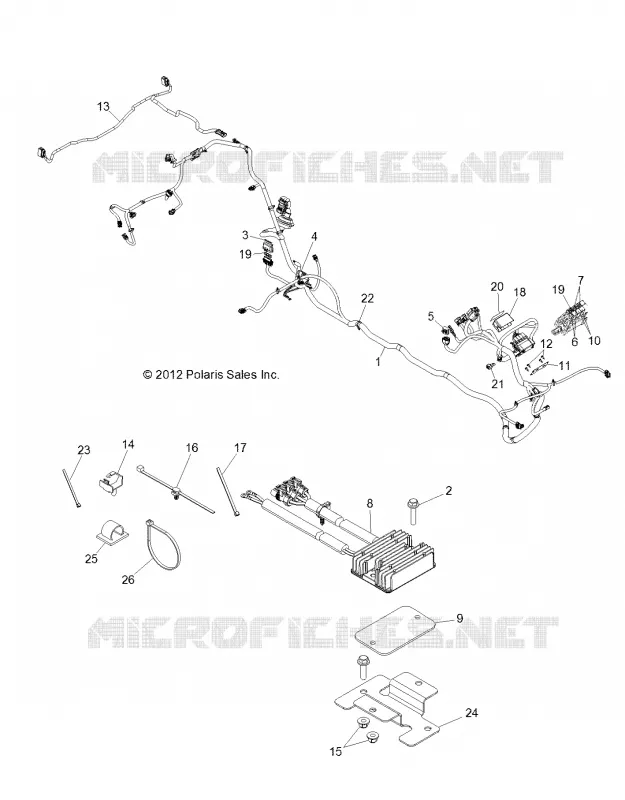

WIRE HARNESS
5
Parts Diagram
Parts Catalog
BATTERY
by
ENGINE, BALANCER
WIRE HARNESS
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
16
23
24
25
17
1
Harness Chassis EPS [Incl. 3-7 10 18-22]
2411692
$1 874,24 Unit Price incl. VAT
2
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
3
DECAL POWER FUSE
7177211
Not Available
4
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
5
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
6
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
7
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
8
REGULATOR
4014029
$535,49 Unit Price incl. VAT
9
PLATE HEAT SINK REGULATOR
5254970
Not Available
10
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
11
Plate Fuse Mount
5253675
$15,74 Unit Price incl. VAT
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
HARNESS-BOX
2411805
$115,49 Unit Price incl. VAT
14
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
15
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
16
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
17
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
18
COVER-RELAY/FUSE CENTER
5438758
$23,09 Unit Price incl. VAT
19
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
20
DECAL RELAY/FUSE BLOCK
7176911
Not Available
21
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
22
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
23
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
24
BRACKET REGULATOR MOUNT BLACK
5256448329
$83,99 Unit Price incl. VAT
25
CLIP WIRE ADHESIVE BACK 1/2#
7670134
$17,84 Unit Price incl. VAT
26
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
