1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog

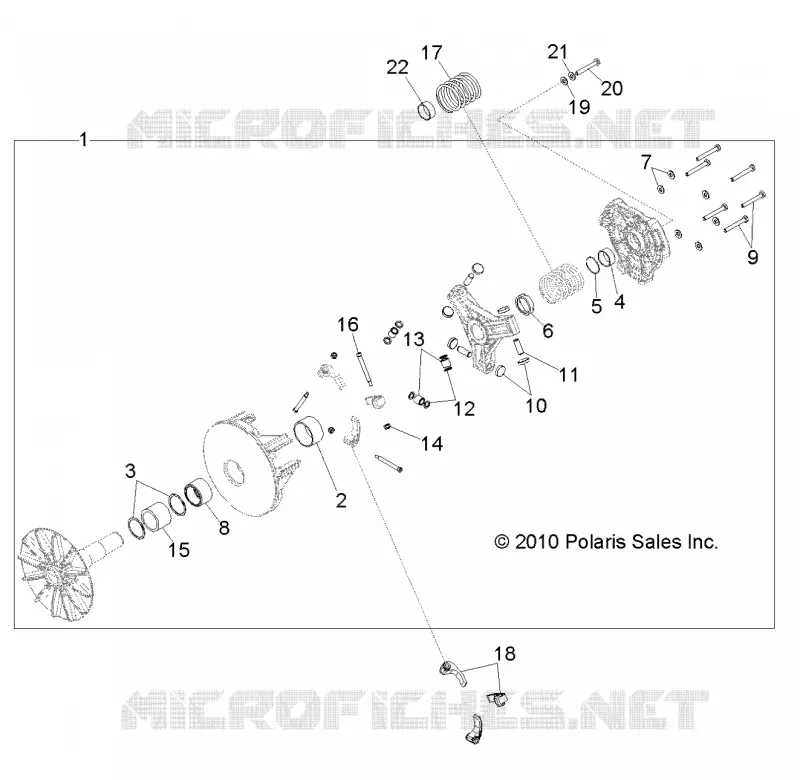

DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS
by
DRIVE TRAIN, REAR HALF SHAFT
DRIVE TRAIN, PRIMARY CLUTCH
1
ASM. DRIVE CLUTCH BASIC BEARING [INCL. 2-16][BUILT 2/02/13 AND AFTER]
1323112
$1 118,24 Unit Price incl. VAT
2
BEARING-DU 1.75ID
3514492
$54,59 Unit Price incl. VAT
3
WASHER-CLUTCH VESPEL
7556335
$11,54 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
RING RETAINING COVER
7710417
$2,09 Unit Price incl. VAT
6
NUT JAM
7547498
$41,99 Unit Price incl. VAT
7
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
8
SPACER-CLUTCH
5633000
$52,49 Unit Price incl. VAT
9
SCREW
7517238
$9,44 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
PIN ROLLER
5137648
$68,24 Unit Price incl. VAT
12
WASHER-CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
13
ASM. ROLLER AND BUSHING
1321622
$62,99 Unit Price incl. VAT
14
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
15
BEARING-NEEDLE
3514609
$60,89 Unit Price incl. VAT
16
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
17
SPRING-CLUTCH 63-226
7043500
$62,99 Unit Price incl. VAT
18
ASM. WEIGHT/BUSHING
1323098
$83,99 Unit Price incl. VAT
19
WASHER-CLUTCH RET M14
5132441
$41,99 Unit Price incl. VAT
20
SCR-M14X1.5X215 HX 10.9 Y35 R
7518412
$52,49 Unit Price incl. VAT
21
WASHER-BLVL .567X1.125X.118-Y
7556003
$11,54 Unit Price incl. VAT
22
SPACER CLUTCH LIMITER
5438963
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
