1
Engine displacement
780
2
Year
1996
3
Trim
INTL SLT 780 - I964588
4
Parts Catalog

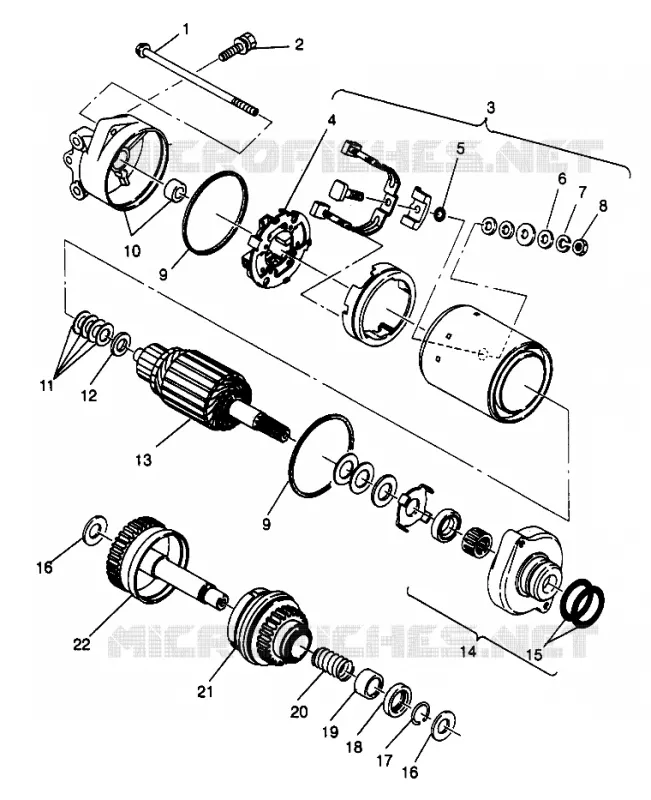

STARTING MOTOR SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C007)
5
Parts Diagram
Parts Catalog
CRANKCASE ASSEMBLY SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568B014)
by
FUEL PUMP SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C008)
STARTING MOTOR SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C007)
-
-
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
-
-
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
-
SHAFT COMPL. (Incl. 4 6-9 11)
3240121
Not Available
-
MOTOR ASM STARTER (Incl. 1 3-15)
3240281
Not Available
1
BOLT THROUGH
3240113
$14,16 Unit Price incl. VAT
2
BOLT FLANGE
3240062
Not Available
3
BRUSH COMPL.
3240115
Not Available
4
SPRING BRUSH
3240111
Not Available
5
O-RING
3084408
Not Available
6
WASHER(10)
3240119
Not Available
7
WASHER SPRING(10)
3240117
Not Available
8
NUT(10)
3240116
Not Available
9
RING RUBBER
3084405
Not Available
10
BRACKET ASM REAR
3240207
$85,88 Unit Price incl. VAT
11
WASHER THRUST(10)
3240118
Not Available
12
WASHER THRUST
3240112
$0,51 Unit Price incl. VAT
13
ARMATURE ASM.
3240205
$179,54 Unit Price incl. VAT
14
BRACKET ASM FRONT Substituted by 3240281 (Incl. 15)
3240282
Not Available
15
O-RING
3240114
$10,49 Unit Price incl. VAT
16
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
17
SNAP RING
3240126
Not Available
18
STOPPER
3240125
Not Available
19
COVER
3240123
Not Available
20
SPRING
3240124
Not Available
21
GEAR ASM. Substituted by 3240120
3240122
4012614
$394,79 Unit Price incl. VAT
22
GEAR ASM. Substituted by 4060119
3240120
4012614
$394,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
