1
Engine displacement
780
2
Year
1996
3
Trim
INTL SLT 780 - I964588
4
Parts Catalog

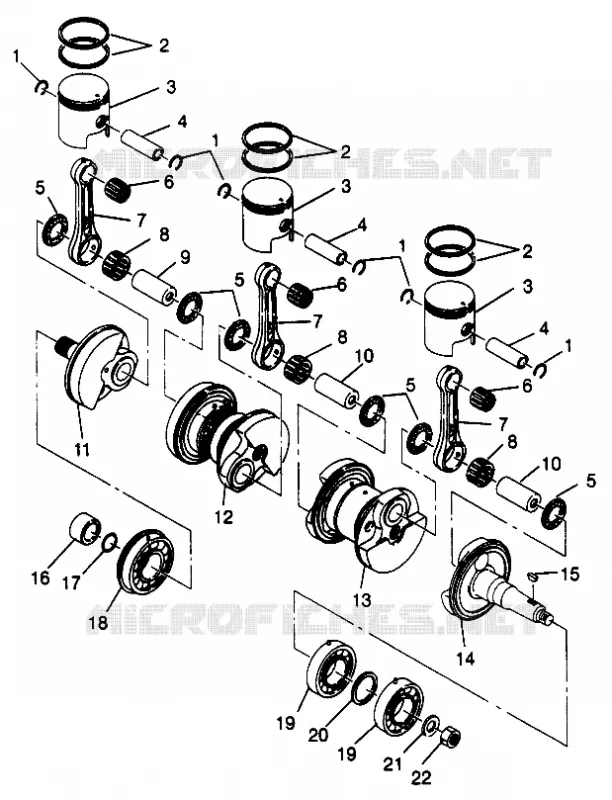

CRANKSHAFT PISTON SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C002)
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C001)
by
CARBURETOR SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C003)
CRANKSHAFT PISTON SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C002)
1
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
2
RING PISTON (.50MM O/S)
3240265
Not Available
2
RING PISTON STD.
3240263
Not Available
2
RING PISTON (.25MM O/S)
3240264
Not Available
3
PISTON (0.50MM O/S)
3240262
Not Available
3
PISTON (0.25MM O/S)
3240261
Not Available
3
PISTON STD.
3240260
Not Available
4
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
5
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
6
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
7
ROD CONNECTING
3240083
$2 351,99 Unit Price incl. VAT
8
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
9
PIN CRANK
3240085
Not Available
10
PIN-CRANK 2
3083254
Not Available
11
CRANKSHAFT 3
3240082
Not Available
12
CRANKSHAFT 2 Substituted by 3240184 (PTO Side) (Incl. 9)
3240081
Not Available
13
CRANKSHAFT CTR. (Center) (Incl. 3 5-9 22)
3240079
$1 140,29 Unit Price incl. VAT
13
CRANKSHAFT MAG SIDE
3240080
Not Available
14
CRANKSHAFT (SL750&650) (Incl. 15 21 22)
3240184
$1 704,14 Unit Price incl. VAT
14
CRANKSHAFT 1
3240167
$480,89 Unit Price incl. VAT
15
Key Woodruff
3240168
$47,24 Unit Price incl. VAT
16
RING WEAR
3240089
Not Available
17
O-RING
3240090
Not Available
18
BEARING BALL
3084545
Not Available
19
BEARING BALL
3084544
Not Available
20
SPACER
3240088
$19,94 Unit Price incl. VAT
21
WASHER
3084457
Not Available
22
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
