1
Engine displacement
780
2
Year
1996
3
Trim
INTL SLT 780 - I964588
4
Parts Catalog

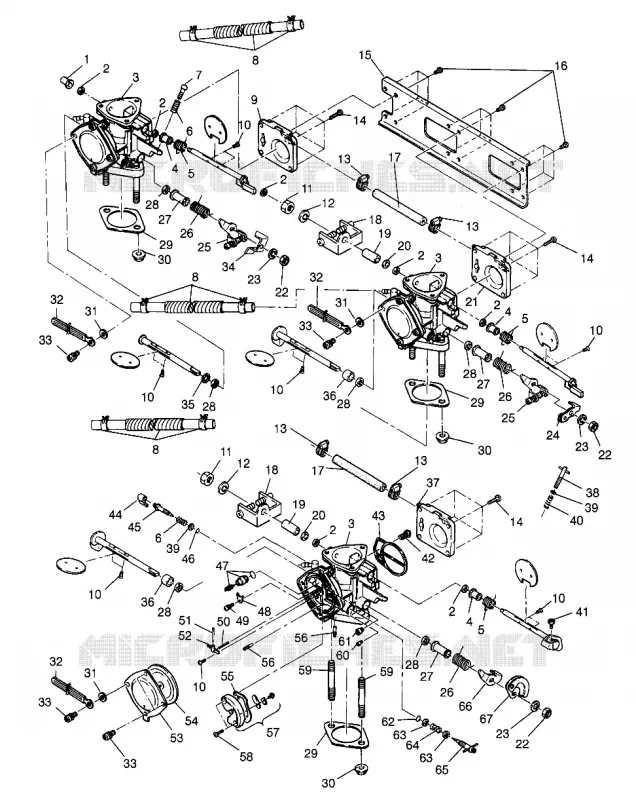

CARBURETOR SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C003)
5
Parts Diagram
Parts Catalog
CRANKSHAFT PISTON SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C002)
by
OIL PUMP SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C005)
CARBURETOR SLT 780 B964588 AND INTL. SLT 780 I964588 (4935683568C003)
24
25
25
26
26
26
27
27
27
28
28
28
28
28
28
29
29
29
30
30
30
31
31
31
32
32
32
33
33
33
33
34
35
36
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
63
64
65
66
67
24
25
25
26
26
26
27
27
27
28
28
28
28
28
28
29
29
29
30
30
30
31
31
31
32
32
32
33
33
33
33
34
35
36
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
63
64
65
66
67
1
RING
3140025
$2,72 Unit Price incl. VAT
2
SEAL
3140022
$7,97 Unit Price incl. VAT
3
CARBURETOR ASM 3 CYL. (Incl. 1-31 34-67)
3140115
$1 889,99 Unit Price incl. VAT
4
RING
3140021
Not Available
5
SPRING
3140020
$7,97 Unit Price incl. VAT
6
SPRING
3140054
$2,93 Unit Price incl. VAT
7
SCREW
3140027
$3,14 Unit Price incl. VAT
8
PIPE ASM VINYL 3 (Incl. Spiral Tube 2 Clamps)
3140109
Not Available
9
COVER ASM.
3140099
Not Available
10
SCREW(10)
3140065
Not Available
11
NUT
3140079
Not Available
12
WASHER SPRING
3140078
Not Available
13
CLAMP
3140028
$15,42 Unit Price incl. VAT
14
SCREW
3140098
$5,87 Unit Price incl. VAT
15
PLATE
3140008
$132,29 Unit Price incl. VAT
16
SCREW
3140009
Not Available
17
HOSE
3140029
Not Available
18
LEVER ASM CHOKE
3140101
Not Available
19
RING
3140076
$5,45 Unit Price incl. VAT
20
RING
3140080
Not Available
21
COVER ASM.
3140102
Not Available
22
NUT
3140011
Not Available
23
WASHER SPRING
3140012
Not Available
24
LEVER THROTTLE
3140081
Not Available
25
LEVER ASM THROTTLE
3140088
Not Available
26
SPRING
3140003
Not Available
27
RING
3140002
Not Available
28
SEAL
3140001
Not Available
29
GASKET CARBURETOR (10) (Carburetor)
3240128
Not Available
30
NUT FLANGE (10)
3240058
Not Available
31
WASHER
3140091
Not Available
32
PLATE
3140090
Not Available
33
SCREW Substituted by 3140027
3140100
Not Available
34
LEVER THROTTLE
3140070
$7,97 Unit Price incl. VAT
35
PACKING
3140030
Not Available
36
RING
3140032
Not Available
37
COVER ASM.
3140095
Not Available
38
SCREW
3140096
Not Available
39
WASHER
3140014
Not Available
40
SPRING
3140013
Not Available
41
SCREW
3140019
Not Available
42
FILTER
3140039
$11,54 Unit Price incl. VAT
43
O-RING (GASKET)
3140006
Not Available
44
CAP
3140047
$6,71 Unit Price incl. VAT
45
ADJUSTER
3140048
Not Available
46
RING
3140049
$17,84 Unit Price incl. VAT
47
NEEDLEVALVE ASM.
3140040
Not Available
48
PLATE
3140037
Not Available
49
SCREW (10)
3140038
Not Available
50
SPRING(10)
3130491
Not Available
51
PIN
3140036
Not Available
52
ARM
3140041
Not Available
53
COVER
3140045
$3,98 Unit Price incl. VAT
54
DIAPHRAGM ASM.
3140044
Not Available
55
GASKET
3140043
Not Available
56
SCREW (1)
3140018
Not Available
57
BODY ASM.
3140035
$65,40 Unit Price incl. VAT
58
SCREW (10)
3140034
Not Available
59
BOLT
3140026
$30,75 Unit Price incl. VAT
60
JET PILOT #67.5 (#67.5)
3140117
Not Available
61
JET MAIN #110 (#110)
3140116
$4,29 Unit Price incl. VAT
62
O-RING
3140053
$10,49 Unit Price incl. VAT
63
WASHER
3140052
Not Available
64
SPRING
3140051
$2,93 Unit Price incl. VAT
65
ADJUSTER
3140050
Not Available
66
LEVER THROTTLE
3140004
$19,83 Unit Price incl. VAT
67
LEVER ASM THROTTLE
3140010
$22,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
