1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
SEAT MOUNTING AND BELTS
5

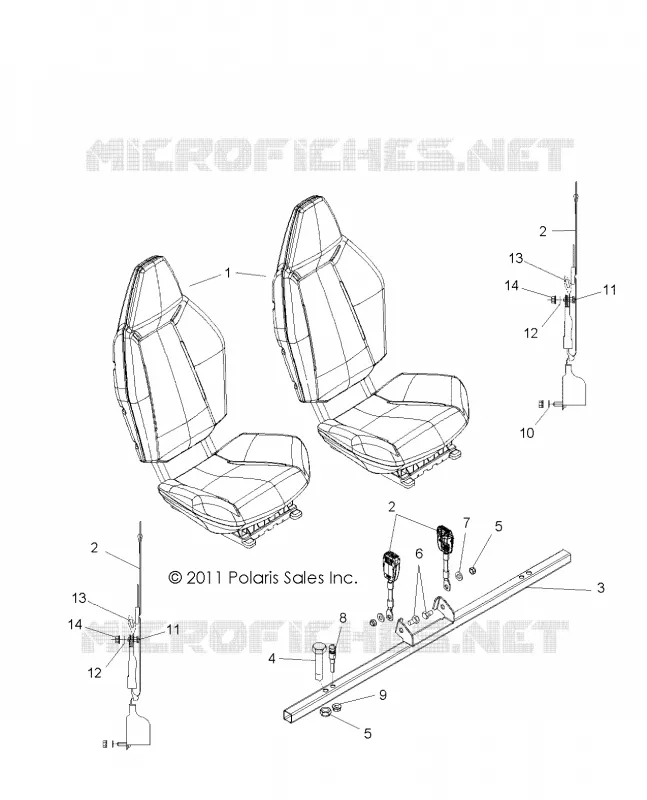

Parts Diagram
Parts Catalog
SEAT ASM.
by
SIDE NETS
SEAT MOUNTING AND BELTS
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ASM. SEAT BELT 3 POINT [INCL. 13 15 16][BUILT 9/30/13 AND BEFORE]
2634887
$351,74 Unit Price incl. VAT
3
BASE SEAT REAR MATTE BLACK
1017452458
Not Available
4
SCR-7/16X14X1.75 HXCP GR 5-Y
7517442
$12,59 Unit Price incl. VAT
5
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
5
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
6
Bolt
7518820
$7,34 Unit Price incl. VAT
6
SCR-7/16-20X1 HX CP GR5-Y
7512520
$9,44 Unit Price incl. VAT
7
WASHER-FLAT .531X1.063X.095-Y
7556333
$7,34 Unit Price incl. VAT
8
Plunger Latch
7519252
$45,14 Unit Price incl. VAT
9
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
10
WASHER-SEATBELT RUBBER
5813829
$2,09 Unit Price incl. VAT
11
BOLT SHOULDER
5137011
$10,49 Unit Price incl. VAT
12
RETAINER
5253444
Not Available
13
BOLT CAP
5137010
$25,19 Unit Price incl. VAT
14
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
