1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUAL
by
REAR STRUT STABILIZER

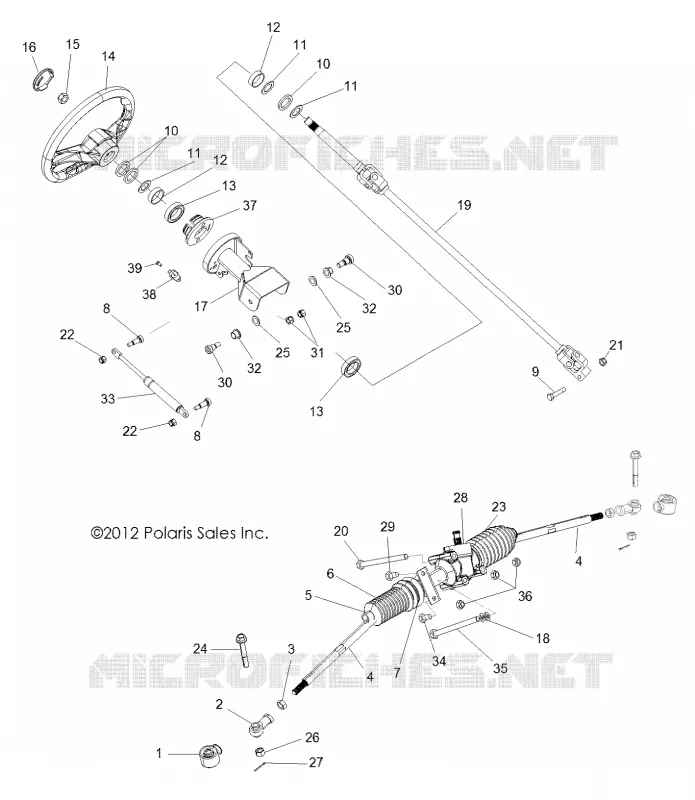

STEERING
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
32
33
34
35
36
37
38
39
1
BOOT SEAL ROD END
5411920
5412929
$20,99 Unit Price incl. VAT
2
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT PASSENGER SIDE RACK
5412013
$104,99 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
9
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
10
WASHER-NEOPREME 28 OD X 20 ID
7556482
$7,34 Unit Price incl. VAT
11
WASHER-30MM ODX 21MM ID X 1.5
7556483
$7,34 Unit Price incl. VAT
12
SPACER-STEERING SHAFT
5252796
$9,44 Unit Price incl. VAT
13
Bearing Steering
3514646
$27,29 Unit Price incl. VAT
14
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
15
NUT
7547188
$10,49 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
17
Tube Pivot w/Steering Lock Matte# Black
1017327458
$272,99 Unit Price incl. VAT
18
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
19
Shaft Steering Upper/Lower
1823727
$241,49 Unit Price incl. VAT
20
Bolt
7518895
$7,34 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
23
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
25
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
26
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
ASM. GEAR BOX STEERING [INCL. 2-8]
1823632
$929,24 Unit Price incl. VAT
29
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
30
SCR-SH-SHDR 0.5X0.5 3/8-16 ZY3
7517607
$10,49 Unit Price incl. VAT
31
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
32
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
33
ASM. SHOCK OIL LOCKING
7043810
$173,24 Unit Price incl. VAT
34
BOLT 5/16-18X3/4
7512371
$9,44 Unit Price incl. VAT
35
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
36
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
37
COLLAR STEERING LOCK MATTE BLK [FR][JR]
5632295458
Not Available
38
Lock Steering w/Cap
7081498
$68,24 Unit Price incl. VAT
39
SCR-M5X.8X10 TX BTN PIN-IN HD
7518457
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
