1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
WHEELS, REAR
5
Parts Diagram
Parts Catalog
WHEELS, FRONT
by
ENGINE, BREATHER

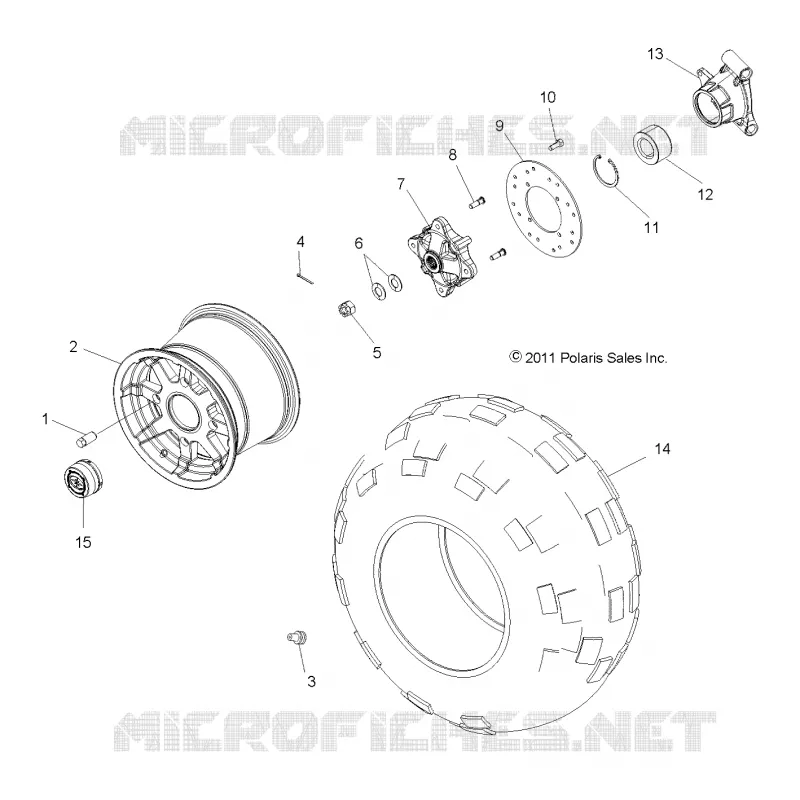

WHEELS, REAR
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
1
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
2
RIM-REAR 12X8CAST 50.1MM M.BLK
1521161458
$448,34 Unit Price incl. VAT
3
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
4
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
5
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
Hub Rear Wheel Black
5135113
5143629
$157,49 Unit Price incl. VAT
8
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
9
DISC-BRAKE REAR 8.625X.188
5248250
$141,74 Unit Price incl. VAT
10
SCR-HH-3/8-16X0.75 GR5 ZY3
7518903
$7,34 Unit Price incl. VAT
11
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
12
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
13
CARRIER BEARING WHEEL LH
5138501
$414,74 Unit Price incl. VAT
13
CARRIER BEARING WHEEL RH
5138502
$414,74 Unit Price incl. VAT
13
Carrier Bearing LH
5137676
5138501
$414,74 Unit Price incl. VAT
13
Carrier Bearing RH
5137677
5138502
$414,74 Unit Price incl. VAT
14
TIRE-REAR 25X10-R12 ANCLA EM [K2]
5414478
$174,29 Unit Price incl. VAT
15
Cap Rim
1521128
$35,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
