1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, PRIMARY CLUTCH

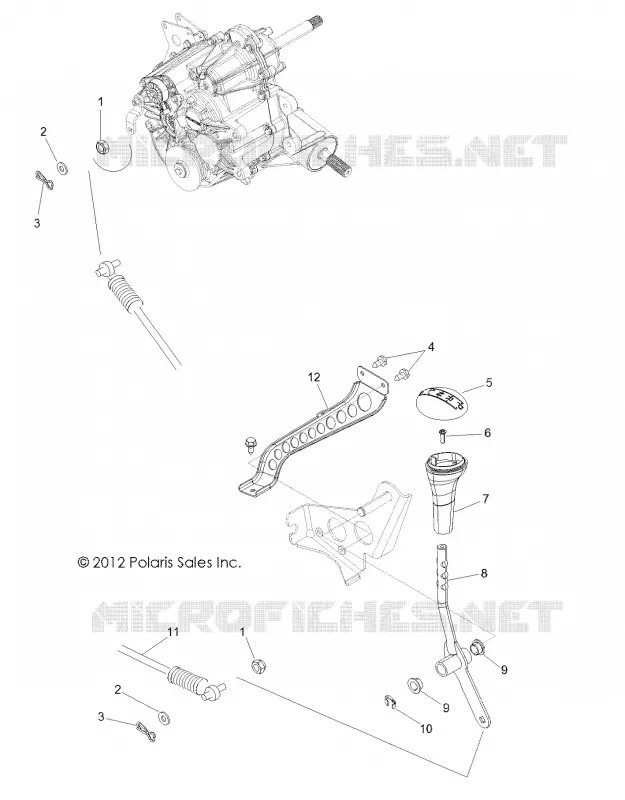

DRIVE TRAIN, GEAR SELECTOR
11
11
12
1
NUT-NYLOCK M8X1.25-Y
7547144
$6,29 Unit Price incl. VAT
2
WASHER
7555954
$9,44 Unit Price incl. VAT
3
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
4
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
5
COVER SHIFT
5413299
$24,14 Unit Price incl. VAT
6
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
7
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
8
WELD-SHIFT LEVER
1542256
1544554
$83,99 Unit Price incl. VAT
9
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
10
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
11
Cable Shift
7081620
$257,24 Unit Price incl. VAT
11
CABLE SHIFT
7081848
$262,49 Unit Price incl. VAT
12
BRACKET SHIFT PARK BRAKE INTL
5256200
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
