1
Engine displacement
500
2
Year
1999
3
Trim
sportsman-500-rse-a99ch50ac
4
Parts Catalog

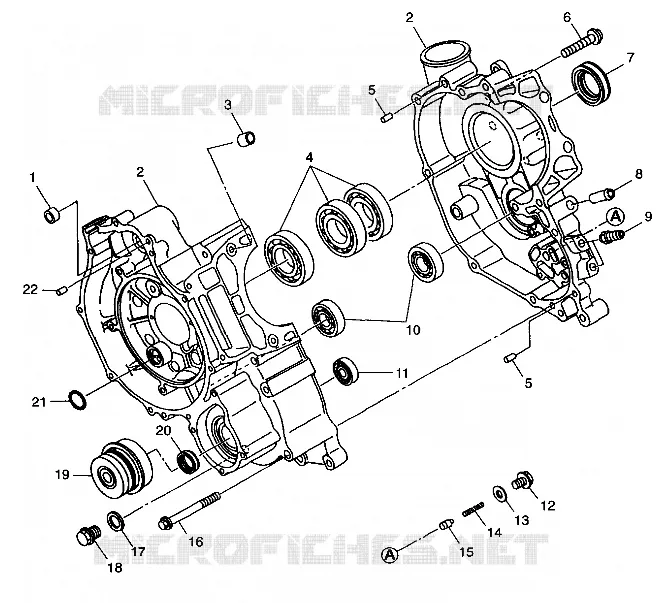

CRANKCASE
5
Parts Diagram
Parts Catalog
INLET EXHAUST
by
CYLINDER
CRANKCASE
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
BUSHING STARTER
3083669
Not Available
2
CRANKCASE ASM. (Incl. 1 4 5 7 8 10 11 16 19 20 22)
3085633
$954,44 Unit Price incl. VAT
3
PIN STRAIGHT
3084838
Not Available
4
BEARING BALL
3080676
$54,59 Unit Price incl. VAT
5
PIN DOWEL
3084840
$12,59 Unit Price incl. VAT
6
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
7
SEAL OIL
3084839
$52,49 Unit Price incl. VAT
8
PIPE AIR BREATHER
3085525
Not Available
9
UNION
3084842
$62,99 Unit Price incl. VAT
10
BEARING BALL
3084834
$40,94 Unit Price incl. VAT
11
BEARING BALL
3084835
Not Available
12
Plug
3084845
Not Available
13
GASKET (ALUM.)(10)
3084846
$10,49 Unit Price incl. VAT
14
SPRING
3084844
$9,44 Unit Price incl. VAT
15
VALVE Substituted by 3086810
3084843
Not Available
16
BOLT FLANGE
3084841
Not Available
17
GASKET
3082956
$9,44 Unit Price incl. VAT
18
PLUG Substituted by 3086749
3083453
Not Available
19
SEAL MECHANICAL
3084837
$125,99 Unit Price incl. VAT
20
SEAL OIL
3084836
Not Available
21
O-RING
3084847
$12,59 Unit Price incl. VAT
22
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
