1
Engine displacement
500
2
Year
1999
3
Trim
sportsman-500-rse-a99ch50ac
4
Parts Catalog
ELECTRICAL/TAILLIGHT
5

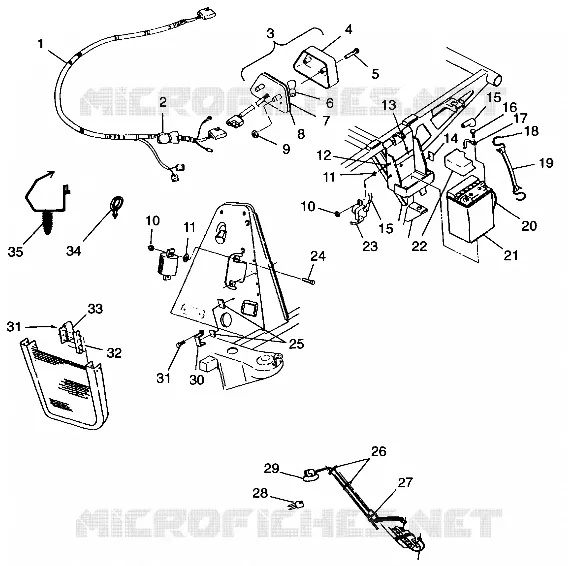

Parts Diagram
Parts Catalog
OIL TANK
by
REAR WHEEL DRIVE
ELECTRICAL/TAILLIGHT
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
1
HARNESS MAINWIRE
2460661
Not Available
2
Kit Breaker Circuit 20 AMP
2200593
$125,99 Unit Price incl. VAT
3
ASM. TAILLIGHT [INCL. LENS AND SCREW]
2432034
$104,99 Unit Price incl. VAT
4
LENS-TAILLIGHT
4032046
$62,99 Unit Price incl. VAT
5
SCREW-TAILLIGHT
4032029
$9,44 Unit Price incl. VAT
6
BULB TAILLIGHT
4030043
$12,59 Unit Price incl. VAT
7
GASKET TAILLIGHT
4032045
$7,34 Unit Price incl. VAT
8
Backing Taillight/Brakelight
4032064
$152,24 Unit Price incl. VAT
9
SPEED NUT-WASHER HEAD-1/4
7670054
$2,09 Unit Price incl. VAT
10
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
11
WASHER-.197X.50 INT/EXT LK-Y
7571602
$9,44 Unit Price incl. VAT
12
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
13
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
14
DECAL BATTERY [No Longer Available]
7072606
Not Available
15
Cable Battery/Solenoid
4010094
Not Available
16
BOLT BATT KIT(SHORT) (Short) (Not Shown)
2200361
Not Available
17
Cable Battery/Engine
4010095
Not Available
18
Hook Strap Battery
7010032
$3,14 Unit Price incl. VAT
19
STRAP BATTERY HOLDDOWN
5410424
5418182
$9,44 Unit Price incl. VAT
20
TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]
5432077
$16,79 Unit Price incl. VAT
21
BATTERY 14 AMP [FROM 8/17/2020]
4140006
$136,49 Unit Price incl. VAT
22
Cover Battery
5431769
$29,39 Unit Price incl. VAT
23
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
24
BOLT
7512007
$7,34 Unit Price incl. VAT
25
PAD RACK MOUNTING
5810455
$6,29 Unit Price incl. VAT
26
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
27
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
28
PIGTAIL POWER
2460442
$19,83 Unit Price incl. VAT
29
Plug Power
2410022
Not Available
30
BRACKET-CDI
5241416
$9,23 Unit Price incl. VAT
31
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
32
Sink Heat
5131036
Not Available
33
RECTIFIER FULL WAVE
4060173
2203636
$325,49 Unit Price incl. VAT
34
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
35
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
