1
Engine displacement
500
2
Year
1999
3
Trim
sportsman-500-rse-a99ch50ac
4
Parts Catalog
CONTROLS
5

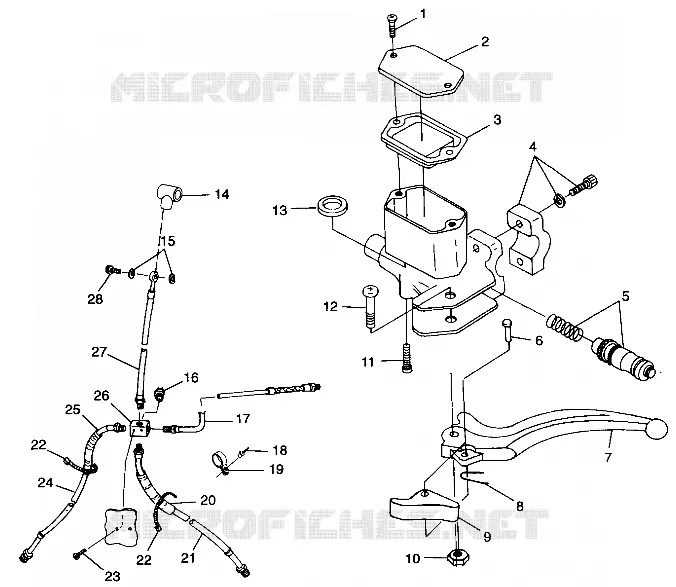

Parts Diagram
Parts Catalog
PROP SHAFT
by
STEERING POST
CONTROLS
-
-
1
2
3
4
5
6
7
8
9
10
11
12
8
14
15
16
8
18
19
20
21
22
22
23
24
25
26
27
28
1
2
3
4
5
6
7
-
MASTER CYL.ASM 3/4#BANJO (Incl. 1-13)
2050078
$456,74 Unit Price incl. VAT
-
KIT MASTER CYL RES. (Incl. 1 2 3 4)
2200809
$125,99 Unit Price incl. VAT
1
KIT BOLT(2) RES.CAP MCYL
1930797
$20,99 Unit Price incl. VAT
2
CAP M.CYL.RES.
1930796
Not Available
3
DIAPHRAGM M.CYL.RES.
1930795
$83,99 Unit Price incl. VAT
4
KIT M.CYL.CLAMP
2200808
Not Available
5
PISTON MCYL 3/4#
1930799
$167,99 Unit Price incl. VAT
6
RIVET
1930804
Not Available
7
KIT LEVER (Incl. 6 25 26)
2201034
$120,74 Unit Price incl. VAT
9
KIT LEVER PARKBRAKE (Incl. 12 14)
2201090
$73,49 Unit Price incl. VAT
10
NUT M.CYL.HANDLE PIVOT
1930806
Not Available
11
BOLT MCYL.RESERVOIR KIT
1930792
$41,99 Unit Price incl. VAT
12
BOLT M.CYL.HANDLE PIVOT
1930805
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
Boot Brake Line Rubber
5411297
$3,35 Unit Price incl. VAT
15
SEAL
5410988
$9,44 Unit Price incl. VAT
16
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
18
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
19
CLAMP-NYLON CABLE 1/4#
7080539
$9,44 Unit Price incl. VAT
20
CONDUIT 30 CM. Substituted by 8360011-34
836003130
Not Available
21
LINE BRAKE LH FR W/FITTINGS
1930752
$167,99 Unit Price incl. VAT
22
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
23
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
24
CONDUIT 38 CM.
836003138
$4,29 Unit Price incl. VAT
25
LINE BRAKE RH FR.W/FITTINGS
1930753
$167,99 Unit Price incl. VAT
26
FITTING CROSS INVERT FLARE
7052129
Not Available
27
BRAKELINE ASM POD
1930817
Not Available
28
Bolt Banjo
1930674
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
