1
Engine displacement
570
2
Year
2023
3
Trim
RANGER SP 570 CREW NORTHSTAR EDITION
4
Parts Catalog

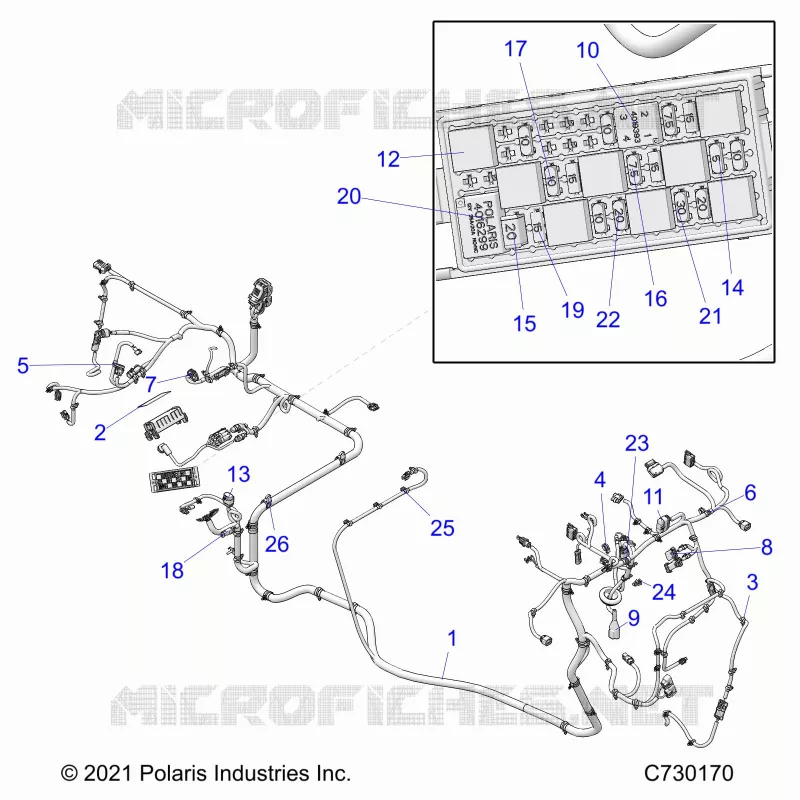

ELECTRICAL, WIRE HARNESSES
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS, COMPONANTS
by
ENGINE, AIR INTAKE SYSTEM
ELECTRICAL, WIRE HARNESSES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
HARN-CHASSIS 570 NSTR CREW
2417161
2416661
$2 346,74 Unit Price incl. VAT
2
LABEL- FUSE BOX 570
7196004
Not Available
3
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
4
CLIP-XMAS OMEGA CABLE/11-15MM
7082750
$6,29 Unit Price incl. VAT
5
CABLE-TIE 7-46MM DUAL-LOOP
7081033
$8,39 Unit Price incl. VAT
6
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
CAP PLUG
5438232
$10,49 Unit Price incl. VAT
9
THROTTLE-CON BOOT
4080238
$18,89 Unit Price incl. VAT
10
SSR-4PIN
4019393
$204,74 Unit Price incl. VAT
11
CAP-EVAP CONNECTOR
4018655
$8,39 Unit Price incl. VAT
12
RELAY - SPST 12V 20A EPXY HFA
4016819
$68,24 Unit Price incl. VAT
13
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
14
FUSE-5A MINI BLADE
4011652
$20,99 Unit Price incl. VAT
15
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
16
FUSE - 7.5 MINI BLADE (BROWN)
4011068
$23,09 Unit Price incl. VAT
17
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
18
DIODE-2 AMP
2415626
$29,39 Unit Price incl. VAT
19
FUSE-MINI BLADE 15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
20
RELAY-SPDT 12V 35A SEALED HFA
4016299
$73,49 Unit Price incl. VAT
21
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
22
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
23
CLIP-EDGE 1-3mm THICKNESS
7082402
$13,64 Unit Price incl. VAT
24
CLIP-EDGE 3-6MM THICKNESS
7082404
$17,84 Unit Price incl. VAT
25
CLIP- EDGE 1-3MM THICKNESS
7082427
$10,49 Unit Price incl. VAT
26
CABLE-TIE M8X1.25 STUD MNT
7082280
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
